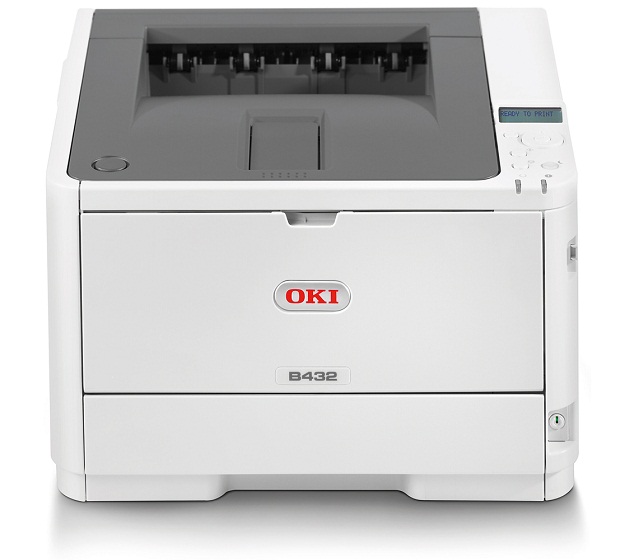

OKI B432dn

Рейтинг

Актуальный

Тип устройства

Принтер

Технология печати

светодиодная

Макс. формат

Число страниц в месяц

80000

Скорость печати A4

Цветность печати

черно-белая

Общие характеристики
Сканер
Телефон
Факс
Копир
Печать фотографий
Технология печати	светодиодная
Число страниц в месяц	80 000
Область применения	средний офис
Размещение	настольный
Цветность печати
Тип	лазерный/светодиодный
Тип устройства	Принтер
Макс. формат	A4
Принтер
Печать без полей
Пигментные чернила
Система непрерывной подачи чернил
Двусторонняя печать
Прямая печать
Время разогрева	17
Макс, разрешение для ч/б печати
По X	1 200
По Y	1 200
Скорость ч/б печати
A4	40
Время выхода первого отпечатка
Ч/б	4,5
Сканер
Стандарт TWAIN
Стандарт WIA
Отправка изображения по e-mail
Слайд-адаптер
Расходные материалы
Количество картриджей	1
Печать на:
Рулоне
Фотобумаге
CD/DVD
Пленках
Этикетках
Матовой бумаге
Карточках
Конвертах
Глянцевой бумаге
Плотность бумаги
Минимальная	60
Максимальная	163
Факс
PC Fax
Цветной
Телефон
Спикерфон
Проводная трубка
Беспроводная трубка
АОН
Caller ID
Автоответчик
Стандарт DECT
Шрифты и языки управления
Языки управления
PCL 6
PCL 5e
PostScript 3
PostScript
PDF
PPDS
PostScript 2
PCL 5c
Количество установленных шрифтов
PCL	87
PostScript	136
Лотки
Подача бумаги
Стандартная	350
Максимальная	880
Вывод бумаги
Стандартный	150
Максимальный	150
Финишер
Степлер
Электронная сортировка
Брошюровщик
Сортер
Сортировка со сдвигом
Интерфейсы
Версия USB	2,0
Устройство для чтения карт памяти
LPT
Инфракрасный порт
Wi-Fi 802.11n
Bluetooth
FireWire (IEEE 1394)
RS-232
Wi-Fi
USB
Поддержка iOS
AirPrint
Веб-интерфейс
Ethernet (RJ-45)
Память/Процессор
Объем памяти	512
Частота процессора	667
Дополнительная информация
Экран
Работа от аккумулятора
Поддержка ОС
DOS
Mac OS
Linux
Windows
Потребляемая мощность
В режиме ожидания	80
При работе	900
Уровень шума
В режиме ожидания	30
При работе	55
Габариты
Глубина	364
Ширина	387
Высота	245
Вес	12

Модули

Front-Assy

Frame-Assy-Rear

Plate-Assy-Side-R

Duplex-Assy

Frame-Assy-MPT

Guide-Eject-Lower-Assy

Frame-Assy-TR

Cover-Assy-Stacker

Cassette-Assy

Printer Unit

Детали

Деталь:	Shaft-Assy.-Eject
Парткод:	44364301

Деталь:	Motor-Pulse
Парткод:	44519301

Деталь:	CONN Cord-AMP8P- AMP8P
Парткод:	44430402

Деталь:	OR-Board-97T
Парткод:	44555101

Деталь:	PHOTO INTERRUPTER GP1A173LCS3F
Парткод:	45723601

Деталь:	Roller-Feed_Dup
Парткод:	44354101

Деталь:	Bearing-Dup
Парткод:	44379301

Деталь:	Frame Assy.-Separator
Парткод:	43922401

Деталь:	Roller-Assy-MPT
Парткод:	43922301

Деталь:	Roller-Pinch
Парткод:	43355101

Деталь:	Roller-Assy.-Pickup
Парткод:	43417901

Деталь:	Lever-Sensor_Exit
Парткод:	44365701

Деталь:	Spring-Sensor_Exit
Парткод:	44365901

Деталь:	Roller-Pinch
Парткод:	43355101

Деталь:	Bearing-TR
Парткод:	43330101

Деталь:	Roller-Transfer
Парткод:	44432101

Деталь:	Cable-FFC-20P(Add)
Парткод:	44570901

Деталь:	LED Head Unit-61TRA
Парткод:	44557701

Коды ошибок

002, 003, 005, FFF

030

040

042, 043

067

069

070

072

073

075

077

081

098

104

106

112

121

122

123

124

126

127

128

134

153

163

170, 171

172, 173

182

190

203 ... 214

209

230

231

923

933

941 ... 946

982

984

Описание

Парткод

Название

OKI Блок фотобарабана черный

OKI B432 Тонер-картридж черный (3000 стр.)

OKI B432 Тонер-картридж черный (7000 стр.)

(45807111) OKI B432HY Тонер-картридж черный (12000 стр.)

Деталь:	Roller-Assy-Hopping
Парткод:	44483301
Цена:	2 100 ₽

Деталь:	Roller-Assy-PickUp
Парткод:	44483601
Цена:	2 400 ₽

Деталь:	Frame Assy.-Retard
Парткод:	44384701
Цена:	3 600 ₽

Деталь:	CONN Cord-JST14P- JST16P
Парткод:	45700501

Деталь:	Board-MRM Maintenance Board
Парткод:	45724901

Error code:	002, 003, 005, FFF
Display:	Power OFF/ON 002 : Error 003 : Error 005 : Error FFF : Error
Description:	CPU Exception
Causes:	Is the error display provided again?
Remedy:	Turn off and on the MFP. Replace the CU/ PU board.

Error code:	030
Display:	Service Call 030: Error
Description:	CU Slot1 DIMM RAM Check Error
Causes:	Is subject RAM DIMM set properly? Is error recovered by replacing subject ROM DIMM?
Remedy:	Reset subject RAM DIMM. Replace RAM DIMM. Replace TIG board. (Replace EEPROM)

Error code:	040
Display:	Service Call 040: Error
Description:	CU EEPROM Error
Causes:	Is error recovered by replacing EEPROM on CU board?
Remedy:	Replace EEPROM. (Recover user environment.) Replace TIG board. (Replace EEPROM)

Error code:	067
Display:	Service Call 067:Error
Description:	A communication error was detected during communication with the Sleep Mode interface monitoring program.
Causes:	Does this error recur?
Remedy:	A communication error was detected during communication with the Sleep Mode interface monitoring program. If power cycling does not solve the problem, maintenance by a service engineer is required.

Error code:	069
Display:	Service Call 069:Error
Description:	Malfunction of the NIC chip was detected.
Causes:	Does this error recur?
Remedy:	Does this error recur? Yes Power OFF/ON. Replace the printer control PCB.

Error code:	070
Display:	Service Call 070: Error
Description:	CANT_HAPPEN PS firmware fault detected.
Causes:	Confirm that error is recovered by turning power OFF/ON.
Remedy:	Replace TIG board. (Replace EEPROM.)

Error code:	072
Display:	Service Call 072: Error
Description:	Engine communication error I/F error between PU-CU.
Causes:	Is CU assembly set properly? Is error recovered by replacing TIG board?
Remedy:	Set properly. Replace TIG board. (Replace EEPROM.) Replace PU board.

Error code:	073
Display:	Reboot the printer. 073: Error xxxxxxxx
Description:	Video Error Error is detected when expanding the video data. (Illegal data is received.)
Remedy:	Is the CU assembly installed normally? Does this error recur? Re-install the CU assembly normally. Change the PC with another PC having high specifications, or alternately reduce resolution power and execute the print again. Replace the CU board. Replace the interface cable. Re-install the PC Printer driver. Is the CU assembly installed normally? Does this error recur? Does the error depend on print Data? Re-install the CU assembly normally. Execute the print again. Print any other data. Replace the CU board. Send the data to design division and request analysis of the data.

Деталь:	Bearing-Feed-R
Парткод:	44422901

Деталь:	Shaft-Roller-Feed
Парткод:	44362101

Деталь:	Roller-Feed
Парткод:	44135601

Деталь:	Bush
Парткод:	43526601

Error code:	075
Display:	Power off/on 075: Error
Description:	An error was detected during image data expansion.
Causes:	Is the CU/PU installed properly?
Remedy:	Does this error recur? Yes Cycle the power. Replace the CU/ PU board.

Error code:	077
Display:	Power Off/On 077:Error xx
Description:	Detected of abnormal condition during image data expansion
Causes:	Does this error recur?
Remedy:	Does this recur? Yes Power OFF/ON. Replace the printer control PCB

Error code:	081
Display:	Service Call 081: Error
Description:	Parameter Match Check Error
Remedy:	Normal Read/Write not possible with EEPROM or Flash. If the condition does not change replace CU PCB.

Error code:	098
Display:	Inspection is required. 098 : Error
Description:	Power Control Error

Error code:	104
Display:	Service Call 104: Error
Description:	Developer Motor Failure The Developer Motor rotation signal indicates that the motor is no longer operational.
Causes:	• Developer Drive Assembly, PL8.1.1 • Engine Control Board, PL9.1.16 • Interlock Switch, PL9.1.11 • FAN/PHD/MOT Harness, PL10.1.9
Remedy:	1 Check the Developer Drive Assembly for damage. Are any parts of the Developer Drive Assembly damaged or excessively worn? Replace the Developer Drive Assy. Go to Step 2. 2 Check the Developer Motor connection. Is P/J491 connected to the harness? Go to Step 3. Reconnect the Developer Motor. 3 Test the Developer Motor. 1. Close the Interlock Switch while testing. 2. Run the Service Diagnostics Developer Motor test. Does the motor operate? Go to Step 5. Go to Step 4. 4 Check for +24 V to the Developer Motor. Is the +24 V across P/J491-1 <=> P/J 481-5? Go to Step 6. Go to Step 5. 5 Test the Interlock Switch. Run the Service Diagnostics Interlock Switch test. Does the switch function correctly? Go to Step 6. Replace the Interlock Switch. 6 Check all pins on the FAN/PHD/MOT Harness PL10.1.9 for continuity. 1. Disconnect P/J48 and P/J491. 2. Check continuity between J48 <=> J491. Replace the Engine Control Board. Replace the FAN/PHD/MOT Harness.

Error code:	106
Display:	Service Call 106: Error
Description:	Motor Failure One of the primary drive motors has failed.
Causes:	• Main Drive Assembly, PL8.1.2 • Developer Drive Assembly, PL8.1.1 • Fuser Drive Assembly, PL5.2.25 • Engine Control Board, PL9.1.16 • Interlock Switch, PL9.1.11
Remedy:	1 Check the motors. Run the Service Diagnostics motor tests to determine the failed part. Is the failed part the Main Drive Motor? Go to. Test the Fuser Motor. 2 Is the failed part the Fuser Drive Motor? Go to. Test the Developer Motor. 3 Is the failed part the Developer Drive Motor? Go to. Replace the Engine Control Board.

Error code:	112
Display:	SVC 112 ERROR
Description:	Printhead Error
Causes:	Incorrect color DTM installation, incorrect PCU installation, development bias error, MCU, LD control malfunction, loss of synchronization
Remedy:	No first Hysnc - yellow Check for the correct installation of all the cables to the system board assembly and to the printhead assembly; J7 and J8 on the system board. Go to “System board”. If the cables are connected correctly to the system board and to the printhead assembly, go to “Printhead diagnostics”. Note: Do not adjust or replace any printhead before performing checks in “Printhead diagnostics”

Error code:	121
Display:	Service Call 121: Error
Description:	Fuser Error
Causes:	Is cable between PU board andhighvoltage power LSI connected properly?
Remedy:	Wrong fuser lamp - BUR - replace the fuser assembly

Error code:	122
Display:	Service Call 122: Error
Description:	Finisher Decurler Failure, Code 122 The level of the Decurler Cam Home Sensor did not change 4 seconds after the Decurler Cam Clutch has turned on.
Causes:	• Decurler Cam Clutch • Stacker Motor • Finisher Control Board
Remedy:	1 1. Rotate the actuator while running the Decurler Cam Position test in diagnostics. 2. Does the value change between H and L? Go to step 2. Troubleshoot using the transmissive sensor procedure. 2 Does the decurler cam clutch operate in diagnostics? Check for a mechanical problem with the decurler cam clutch drive. If no problem is found replace the clutch. Go to step 3. 3 Is +24 VDC present at P/J 849-1? Replace the decurler cam clutch. Go to step 4. 4 Is +24 VDC present at test point 5 on the finisher control board? Replace the finisher control board. Troubleshoot the +24 VDC interlock circuit. 5 Is +24 VDC present at P/J 847-11 with the Finisher Stacker Motor Down test running in diagnostics? Replace the stacker motor. Replace the finisher control board

Error code:	123
Display:	Service Call 123: Error
Description:	Finisher Set Clamp Failure, Code 123 The set clamp home sensor did not turn on within 2 seconds after the set clamp started operation.
Causes:	• Set Clamp Solenoid • Finisher Control Board
Remedy:	1 1. Check the Set Clamp home sensor in diagnostics. 2. Does the value change from H to L while rotating the actuator? Go to step 2. Use the transmissive Sensor procedure to diagnose and repair the sensor. 2 Does the solenoid energize when running the Set Clamp Paddle test in diagnostics? Go to step 3. Go to step 4. 3 1. Run the Eject Forward Test and then the Eject Release Test in diagnostics. 2. Does the set clamp paddle turn once? Replace the finisher control board. Go to step 4. 4 Is +24 VDC present at P848A-10? Go to step 5. Go to step 6. 5 Is +24 VDC present at P848A-11? Replace the finisher control board. Replace the set clamp solenoid. 6 Is +24 VDC present at test point 9 on the finisher control board? Replace the finisher control board. Troubleshoot and repair the +24 VDC interlock circuit.

OKI B432dn

Общие характеристики

Сканер

Телефон

Факс

Копир

Печать фотографий

Технология печати

Число страниц в месяц

Область применения

Размещение

Цветность печати

Тип

Тип устройства

Макс. формат

Принтер

Печать без полей

Пигментные чернила

Система непрерывной подачи чернил

Двусторонняя печать

Прямая печать

Время разогрева

Макс, разрешение для ч/б печати

Скорость ч/б печати

Время выхода первого отпечатка

Сканер

Стандарт TWAIN

Стандарт WIA

Отправка изображения по e-mail

Слайд-адаптер

Расходные материалы

Количество картриджей

Печать на:

Плотность бумаги

Факс

PC Fax

Цветной

Телефон

Спикерфон

Проводная трубка

Беспроводная трубка

АОН

Caller ID

Автоответчик

Стандарт DECT

Шрифты и языки управления

Языки управления

Количество установленных шрифтов

Лотки

Подача бумаги

Вывод бумаги

Финишер

Степлер

Электронная сортировка

Брошюровщик

Сортер

Сортировка со сдвигом

Интерфейсы

Версия USB

Устройство для чтения карт памяти

LPT

Инфракрасный порт

Wi-Fi 802.11n

Bluetooth

FireWire (IEEE 1394)

RS-232

Wi-Fi

USB

Поддержка iOS

AirPrint

Веб-интерфейс

Ethernet (RJ-45)

Память/Процессор

Объем памяти

Частота процессора

Дополнительная информация

Экран

Работа от аккумулятора

Поддержка ОС

Потребляемая мощность

Error code:	124
Display:	Service Call 124: Error
Description:	Finisher Communication Failure, Code 124
Remedy:	There are no diagnostic routines for problems involving serial communications. It is recommended that you address the following assemblies in this order: • Finisher Control Board • Engine Control Board • Perform continuity checks on any wiring harnesses involved.

Error code:	126
Display:	Turn power OFF and wait 126: Dew error
Description:	Fuser Error
Causes:	Sensor dew error detected.
Remedy:	Fuser open thermistor hot roll

Error code:	127
Display:	Contact the Service center. 127: Error
Description:	Fuser Error
Causes:	• Scanner motor defective (motor lead connected incorrectly) • MCU board defective (scanner motor control unit)
Remedy:	Fuser open thermistor BUR

Error code:	128
Display:	Service Call 128: Error
Description:	Fuser Error
Causes:	• Scanner motor defective • Overload on scanner mechanism • PSU-Eb board defective • MCU board defective (scanner motor control unit)
Remedy:	Fuser under temperature in standby - hot roll

Error code:	134
Display:	Service Call 134:Error
Description:	Fuser Error
Remedy:	Fuser lamp on too long hot roll

Error code:	153
Display:	Service call 153: Error
Description:	Jam at Duplex: Jam D The Duplex Jam Sensor indicates that paper did not reach the sensor on time or that paper remains in the Chute Assembly Out.
Causes:	• Duplex Jam Sensor, PL5.4.1 • Jam Sensor Actuator, PL5.4.13 • Duplex Motor Assembly, PL5.4.5 • FRONT/DUP Harness, PL5.3.28 • Chute Assembly Out, PL5.3.1
Remedy:	1 Check the following for evidence of fault or damage: • Duplex Motor Assembly, PL5.4.5 • JAM Sensor Actuator, PL5.4.13 • Chute Assembly Out, PL5.3.1 Are there any defects? Replace any damaged part. Go to Step 2. 2 Test the Duplex Jam Sensor. Run the Service Diagnostics Jam Sensor test. Does the sensor function correctly? Go to Step 7. Replace the Duplex Jam Sensor and Go to Step 3. 3 Check printer function. Does the printer function correctly after replacing the Duplex Jam Sensor? Complete Go to Step 4. 4 Check the Duplex Jam Sensor signal. Block the Duplex Jam Sensor. Is the voltage across J133-1 <=> J133-2 0 V? Go to Step 6. Go to Step 5. 5 Check FRONT/DUP Harness continuity. 1. Disconnect P/J133 and P/J13. 2. Check continuity between J133 <=> J13 Go to Step 6. Replace the FRONT/DUP Harness. 6 Print a Test Print in Duplex mode Does the sheet reverse in the printer? Replace the Chute Assembly Out. Go to Step 7. 7 Test the Duplex Motor. 1. Close the Interlock Switch during the test. 2. Run the Service Diagnostics Duplex Motor test. Does the Duplex Motor function correctly? Replace the Chute Assembly Out. Go to Step 8. 8 Check for +24 V to the Duplex Motor. Disconnect P/J501. Is there +24 V across P501-6 <=> ground? Go to Step 9. Replace the Engine Control Board. 9 Check all pins on the FRONT/DUP Harness PL5.3.28 for continuity. 1. Disconnect P/J13 and P/J501. 2. Check continuity between J13 <=> P501. Got to Step 10. Replace the FRONT/DUP Harness. 10 Replace the Duplex Motor. Does the error persist? Replace the Engine Control Board. Complete

Error code:	163
Display:	Service Call 163:Error
Description:	Motor
Remedy:	Magenta cartridge BLDC motor mfg. unknown - go to “163 error code” on page 2-65.

Error code:	182
Display:	Service call 182: Error
Description:	I/F Error, Loc: Tray2
Causes:	• Scanner unit harness loose, defective • Fan, MCU harness loose, defective • SBU Fan motor defective • MCU defective • SIB defective

Error code:	190
Display:	Service Call 190: Error
Description:	System Memory Overflow
Remedy:	System Memory Overflow Power OFF/ON Replace CU PCB. (Replace EEPROM)

Error code:	209
Display:	Power On/off 209: DOWNLOAD ERROR
Description:	Custom Media Table Download Error Failed to download custom media table.
Remedy:	Failed to download custom media table. After turning ON the power again, try downloading again. (This process isn’t executed for regular operations, therefore, will not occur)
