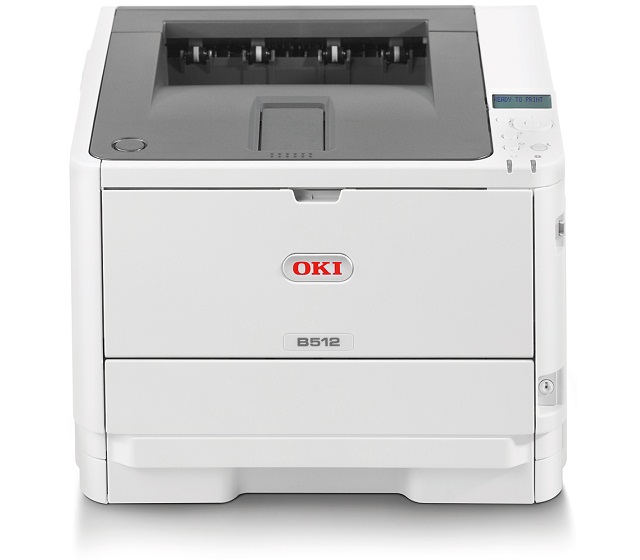

OKI B512dn

Рейтинг

Снят с производства

Тип устройства

Принтер

Технология печати

светодиодная

Макс. формат

Число страниц в месяц

100000

Скорость печати A4

Цветность печати

черно-белая

Общие характеристики
Тип	лазерный/светодиодный
Цветность печати
Технология печати	светодиодная
Число страниц в месяц	100 000
Область применения	большой офис
Тип устройства	Принтер
Размещение	настольный
Макс. формат	A4
Факс
Печать фотографий
Копир
Телефон
Сканер
Принтер
Двусторонняя печать
Прямая печать
Печать без полей
Пигментные чернила
Система непрерывной подачи чернил
Макс, разрешение для ч/б печати
По Y	1 200
По X	1 200
Скорость ч/б печати
A4	47
Сканер
Слайд-адаптер
Отправка изображения по e-mail
Стандарт TWAIN
Стандарт WIA
Расходные материалы
Количество картриджей	1
Печать на:
Рулоне
Фотобумаге
CD/DVD
Этикетках
Матовой бумаге
Карточках
Конвертах
Глянцевой бумаге
Пленках
Факс
PC Fax
Цветной
Телефон
Автоответчик
Стандарт DECT
АОН
Беспроводная трубка
Проводная трубка
Спикерфон
Caller ID
Языки управления
PPDS
PDF
PCL 5c
PostScript 3
PostScript 2
PCL 5e
PostScript
PCL 6
Подача бумаги
Стандартная	630
Финишер
Степлер
Электронная сортировка
Сортировка со сдвигом
Сортер
Брошюровщик
Интерфейсы
Ethernet (RJ-45)
USB
Wi-Fi 802.11n
FireWire (IEEE 1394)
Wi-Fi
Bluetooth
LPT
AirPrint
Инфракрасный порт
RS-232
Веб-интерфейс
Устройство для чтения карт памяти
Версия USB	2,0
Дополнительная информация
Работа от аккумулятора
Экран
Поддержка ОС
Mac OS
Windows
Linux
DOS
Габариты
Вес	13
Глубина	394
Ширина	387
Высота	286

Модули

Printer Unit

Duplex-Assy

Frame-Assy-Rear

Plate-Assy-Side-R

Front-Assy

Guide-Eject-Lower-Assy

Frame-Assy-MPT

Frame-Assy-TR

Cover-Assy-Stacker

Cassette-Assy

Детали Printer Unit

Деталь:	Frame-Assy-TR
Парткод:	44559301

Деталь:	Fuser-Assy-(100V)
Парткод:	44565809

Деталь:	Fuser-Assy-(120V)
Парткод:	44565810

Деталь:	Fuser-Assy-(240V)
Парткод:	44565811

Деталь:	Spring-Contact
Парткод:	44509801

Деталь:	OR-Board -97H
Парткод:	44554001

Деталь:	CLUTCH
Парткод:	44261402

Деталь:	Clutch-3.5
Парткод:	44261403

Деталь:	Clutch-4.5
Парткод:	44261405

Деталь:	Motor-DC(Main)
Парткод:	44558301

Деталь:	CONN Cord-JST14P- JST16P
Парткод:	45700501

Деталь:	Motor-Fan
Парткод:	44557102

Деталь:	Board-MRM Maintenance Board
Парткод:	45724901

Деталь:	Board-MRM Maintenance Board
Парткод:	45724911

Деталь:	Board-MRM Maintenance Board
Парткод:	45724921

Деталь:	Board-MRM Maintenance Board
Парткод:	45724931

Деталь:	Board-MRM Maintenance Board
Парткод:	45724941

Деталь:	Board-MRM Maintenance Board
Парткод:	45724948

Деталь:	PWR unit-ACDC Switch
Парткод:	45866201

Деталь:	OR-Board-30L
Парткод:	45762701

Деталь:	Gear-MPT-CL-Z28
Парткод:	44362601

Деталь:	Cassette-Assy(250sht)
Парткод:	44559001

Деталь:	Cassette-Assy-(530)
Парткод:	44579504

Деталь:	Duplex-Assy
Парткод:	44563701

Деталь:	Duplex-Assy(530)
Парткод:	44563702

Деталь:	Front-Assy.-
Парткод:	44561503

Деталь:	Front-Assy.-PN297(530)
Парткод:	44561504

Коды ошибок

002, 003, 005, FFF

030

040

042, 043

067

069

070

072

073

075

077

081

098

104

106

112

121

122

123

124

126

127

128

134

153

163

170, 171

172, 173

182

190

203 ... 214

209

230

231

923

933

941 ... 946

982

984

Описание

Парткод

45807119

45807120

45807121

Название

OKI B432 Тонер-картридж черный (3000 стр.)

OKI B432 Тонер-картридж черный (7000 стр.)

(45807111) OKI B432HY Тонер-картридж черный (12000 стр.)

Деталь:	Roller-Assy-Hopping
Парткод:	44483301
Цена:	2 100 ₽

Деталь:	Roller-Assy-PickUp
Парткод:	44483601
Цена:	2 400 ₽

Деталь:	PHOTO INTERRUPTER GP1A173LCS3F
Парткод:	45723601

Деталь:	Frame Assy.-Retard
Парткод:	44384701
Цена:	3 600 ₽

Error code:	002, 003, 005, FFF
Display:	Power OFF/ON 002 : Error 003 : Error 005 : Error FFF : Error
Description:	CPU Exception
Causes:	Is the error display provided again?
Remedy:	Turn off and on the MFP. Replace the CU/ PU board.

Error code:	030
Display:	Service Call 030: Error
Description:	CU Slot1 DIMM RAM Check Error
Causes:	Is subject RAM DIMM set properly? Is error recovered by replacing subject ROM DIMM?
Remedy:	Reset subject RAM DIMM. Replace RAM DIMM. Replace TIG board. (Replace EEPROM)

Error code:	040
Display:	Service Call 040: Error
Description:	CU EEPROM Error
Causes:	Is error recovered by replacing EEPROM on CU board?
Remedy:	Replace EEPROM. (Recover user environment.) Replace TIG board. (Replace EEPROM)

Error code:	067
Display:	Service Call 067:Error
Description:	A communication error was detected during communication with the Sleep Mode interface monitoring program.
Causes:	Does this error recur?
Remedy:	A communication error was detected during communication with the Sleep Mode interface monitoring program. If power cycling does not solve the problem, maintenance by a service engineer is required.

Error code:	069
Display:	Service Call 069:Error
Description:	Malfunction of the NIC chip was detected.
Causes:	Does this error recur?
Remedy:	Does this error recur? Yes Power OFF/ON. Replace the printer control PCB.

Error code:	070
Display:	Service Call 070: Error
Description:	CANT_HAPPEN PS firmware fault detected.
Causes:	Confirm that error is recovered by turning power OFF/ON.
Remedy:	Replace TIG board. (Replace EEPROM.)

Error code:	072
Display:	Service Call 072: Error
Description:	Engine communication error I/F error between PU-CU.
Causes:	Is CU assembly set properly? Is error recovered by replacing TIG board?
Remedy:	Set properly. Replace TIG board. (Replace EEPROM.) Replace PU board.

Error code:	073
Display:	Reboot the printer. 073: Error xxxxxxxx
Description:	Video Error Error is detected when expanding the video data. (Illegal data is received.)
Remedy:	Is the CU assembly installed normally? Does this error recur? Re-install the CU assembly normally. Change the PC with another PC having high specifications, or alternately reduce resolution power and execute the print again. Replace the CU board. Replace the interface cable. Re-install the PC Printer driver. Is the CU assembly installed normally? Does this error recur? Does the error depend on print Data? Re-install the CU assembly normally. Execute the print again. Print any other data. Replace the CU board. Send the data to design division and request analysis of the data.

Деталь:	Roller-Feed_Dup
Парткод:	44354101

Деталь:	Bearing-Dup
Парткод:	44379301

Деталь:	Shaft-Assy.-Eject
Парткод:	44364301

Деталь:	Motor-Pulse
Парткод:	44519301

Error code:	075
Display:	Power off/on 075: Error
Description:	An error was detected during image data expansion.
Causes:	Is the CU/PU installed properly?
Remedy:	Does this error recur? Yes Cycle the power. Replace the CU/ PU board.

Error code:	077
Display:	Power Off/On 077:Error xx
Description:	Detected of abnormal condition during image data expansion
Causes:	Does this error recur?
Remedy:	Does this recur? Yes Power OFF/ON. Replace the printer control PCB

Error code:	081
Display:	Service Call 081: Error
Description:	Parameter Match Check Error
Remedy:	Normal Read/Write not possible with EEPROM or Flash. If the condition does not change replace CU PCB.

Error code:	098
Display:	Inspection is required. 098 : Error
Description:	Power Control Error

Error code:	104
Display:	Service Call 104: Error
Description:	Developer Motor Failure The Developer Motor rotation signal indicates that the motor is no longer operational.
Causes:	• Developer Drive Assembly, PL8.1.1 • Engine Control Board, PL9.1.16 • Interlock Switch, PL9.1.11 • FAN/PHD/MOT Harness, PL10.1.9
Remedy:	1 Check the Developer Drive Assembly for damage. Are any parts of the Developer Drive Assembly damaged or excessively worn? Replace the Developer Drive Assy. Go to Step 2. 2 Check the Developer Motor connection. Is P/J491 connected to the harness? Go to Step 3. Reconnect the Developer Motor. 3 Test the Developer Motor. 1. Close the Interlock Switch while testing. 2. Run the Service Diagnostics Developer Motor test. Does the motor operate? Go to Step 5. Go to Step 4. 4 Check for +24 V to the Developer Motor. Is the +24 V across P/J491-1 <=> P/J 481-5? Go to Step 6. Go to Step 5. 5 Test the Interlock Switch. Run the Service Diagnostics Interlock Switch test. Does the switch function correctly? Go to Step 6. Replace the Interlock Switch. 6 Check all pins on the FAN/PHD/MOT Harness PL10.1.9 for continuity. 1. Disconnect P/J48 and P/J491. 2. Check continuity between J48 <=> J491. Replace the Engine Control Board. Replace the FAN/PHD/MOT Harness.

Error code:	106
Display:	Service Call 106: Error
Description:	Motor Failure One of the primary drive motors has failed.
Causes:	• Main Drive Assembly, PL8.1.2 • Developer Drive Assembly, PL8.1.1 • Fuser Drive Assembly, PL5.2.25 • Engine Control Board, PL9.1.16 • Interlock Switch, PL9.1.11
Remedy:	1 Check the motors. Run the Service Diagnostics motor tests to determine the failed part. Is the failed part the Main Drive Motor? Go to. Test the Fuser Motor. 2 Is the failed part the Fuser Drive Motor? Go to. Test the Developer Motor. 3 Is the failed part the Developer Drive Motor? Go to. Replace the Engine Control Board.

Error code:	112
Display:	SVC 112 ERROR
Description:	Printhead Error
Causes:	Incorrect color DTM installation, incorrect PCU installation, development bias error, MCU, LD control malfunction, loss of synchronization
Remedy:	No first Hysnc - yellow Check for the correct installation of all the cables to the system board assembly and to the printhead assembly; J7 and J8 on the system board. Go to “System board”. If the cables are connected correctly to the system board and to the printhead assembly, go to “Printhead diagnostics”. Note: Do not adjust or replace any printhead before performing checks in “Printhead diagnostics”

Error code:	121
Display:	Service Call 121: Error
Description:	Fuser Error
Causes:	Is cable between PU board andhighvoltage power LSI connected properly?
Remedy:	Wrong fuser lamp - BUR - replace the fuser assembly

Error code:	122
Display:	Service Call 122: Error
Description:	Finisher Decurler Failure, Code 122 The level of the Decurler Cam Home Sensor did not change 4 seconds after the Decurler Cam Clutch has turned on.
Causes:	• Decurler Cam Clutch • Stacker Motor • Finisher Control Board
Remedy:	1 1. Rotate the actuator while running the Decurler Cam Position test in diagnostics. 2. Does the value change between H and L? Go to step 2. Troubleshoot using the transmissive sensor procedure. 2 Does the decurler cam clutch operate in diagnostics? Check for a mechanical problem with the decurler cam clutch drive. If no problem is found replace the clutch. Go to step 3. 3 Is +24 VDC present at P/J 849-1? Replace the decurler cam clutch. Go to step 4. 4 Is +24 VDC present at test point 5 on the finisher control board? Replace the finisher control board. Troubleshoot the +24 VDC interlock circuit. 5 Is +24 VDC present at P/J 847-11 with the Finisher Stacker Motor Down test running in diagnostics? Replace the stacker motor. Replace the finisher control board

Error code:	123
Display:	Service Call 123: Error
Description:	Finisher Set Clamp Failure, Code 123 The set clamp home sensor did not turn on within 2 seconds after the set clamp started operation.
Causes:	• Set Clamp Solenoid • Finisher Control Board
Remedy:	1 1. Check the Set Clamp home sensor in diagnostics. 2. Does the value change from H to L while rotating the actuator? Go to step 2. Use the transmissive Sensor procedure to diagnose and repair the sensor. 2 Does the solenoid energize when running the Set Clamp Paddle test in diagnostics? Go to step 3. Go to step 4. 3 1. Run the Eject Forward Test and then the Eject Release Test in diagnostics. 2. Does the set clamp paddle turn once? Replace the finisher control board. Go to step 4. 4 Is +24 VDC present at P848A-10? Go to step 5. Go to step 6. 5 Is +24 VDC present at P848A-11? Replace the finisher control board. Replace the set clamp solenoid. 6 Is +24 VDC present at test point 9 on the finisher control board? Replace the finisher control board. Troubleshoot and repair the +24 VDC interlock circuit.
