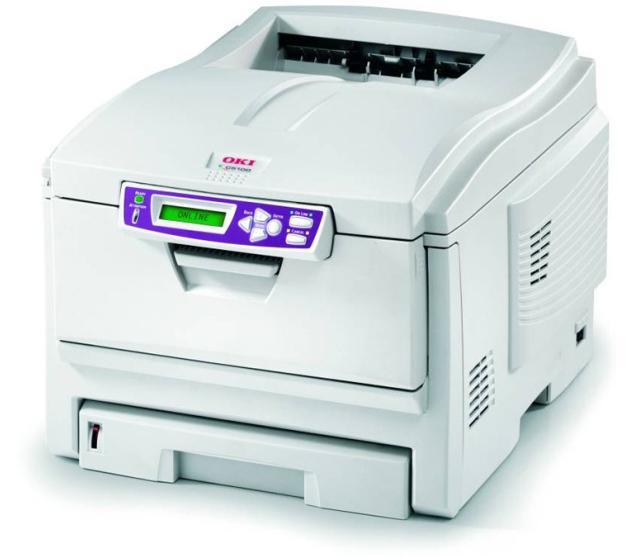

OKI C5100N

Рейтинг

Снят с производства

Тип устройства

Принтер

Технология печати

светодиодная

Макс. формат

Число страниц в месяц

50000

Скорость печати A4

Цветность печати

цветная

Общие характеристики
Технология печати	светодиодная
Число страниц в месяц	50 000
Область применения	средний офис
Тип	лазерный/светодиодный
Тип устройства	Принтер
Печать фотографий
Копир
Сканер
Факс
Телефон
Макс. формат	A4
Цветность печати	цветная
Размещение	настольный
Принтер
Количество цветов	4
Прямая печать
Печать без полей
Пигментные чернила
Двусторонняя печать
Макс, разрешение для ч/б печати
По X	600
По Y	1 200
Скорость ч/б печати
A4	20
Время выхода первого отпечатка
Ч/б	9
Сканер
Стандарт WIA
Стандарт TWAIN
Отправка изображения по e-mail
Слайд-адаптер
Скорость сканирования
Цветн,	14
Расходные материалы
Ресурс цветного картриджа/тонера	5 000
Ресурс ч/б картриджа/тонера	5 000
Количество картриджей	4
Печать на:
Фотобумаге
Пленках
Этикетках
Плотность бумаги
Максимальная	176
Минимальная	75
Факс
Цветной
Телефон
Проводная трубка
АОН
Caller ID
Автоответчик
Стандарт DECT
Спикерфон
Беспроводная трубка
Языки управления
PostScript
Лотки
Емкость лотка ручной подачи	100
Подача бумаги
Максимальная	939
Стандартная	400
Вывод бумаги
Стандартный	350
Финишер
Степлер
Брошюровщик
Сортер
Интерфейсы
USB
Ethernet (RJ-45)
RS-232
Инфракрасный порт
FireWire (IEEE 1394)
Wi-Fi
Bluetooth
LPT
Устройство для чтения карт памяти
Память/Процессор
Макс, объем памяти	320
Частота процессора	200
Объем памяти	32
Дополнительная информация
Поддержка ОС
Windows
Mac OS
DOS
Linux
Уровень шума
При работе	54
В режиме ожидания	40
Габариты
Глубина	528
Ширина	400
Высота	330
Вес	25

Модули

(Детали корпуса)

(Узел переноса)

(Электронные компоненты)

(Подача и захват бумаги)

(Узел термозакрепления)

Детали None

Деталь:	Держатель и ролик подачи бумаги из кассеты, в сборе (лоток 2)
Парткод:	42051401

Деталь:	Ось ролика захвата бумаги из кассеты (лоток 2)
Парткод:	42050701

Деталь:	INTER. TRANSFER BELT ASSY
Парткод:	42158712

Деталь:	Control-panel assembly
Парткод:	42067501

Деталь:	FIXING ASSEMBLY
Парткод:	42158603

Деталь:	THERMISTOR FIXING
Парткод:	42303301

Деталь:	Top-cover assembly (HP LaserJet P2035)
Парткод:	42074501

Деталь:	Держатель и ролик подачи бумаги из кассеты, в сборе (лоток 2)
Парткод:	42051401

Деталь:	Ось ролика захвата бумаги из кассеты (лоток 2)
Парткод:	42050701

Деталь:	INTER. TRANSFER BELT ASSY
Парткод:	42158712

Деталь:	Control-panel assembly
Парткод:	42067501

Деталь:	FIXING ASSEMBLY
Парткод:	42158603

Деталь:	THERMISTOR FIXING
Парткод:	42303301

Деталь:	Top-cover assembly (HP LaserJet P2035)
Парткод:	42074501

Деталь:	Держатель и ролик подачи бумаги из кассеты, в сборе (лоток 2)
Парткод:	42051401

Деталь:	Ось ролика захвата бумаги из кассеты (лоток 2)
Парткод:	42050701

Деталь:	INTER. TRANSFER BELT ASSY
Парткод:	42158712

Деталь:	Control-panel assembly
Парткод:	42067501

Деталь:	FIXING ASSEMBLY
Парткод:	42158603

Деталь:	THERMISTOR FIXING
Парткод:	42303301

Деталь:	Top-cover assembly (HP LaserJet P2035)
Парткод:	42074501

Деталь:	Держатель и ролик подачи бумаги из кассеты, в сборе (лоток 2)
Парткод:	42051401

Деталь:	Ось ролика захвата бумаги из кассеты (лоток 2)
Парткод:	42050701

Деталь:	INTER. TRANSFER BELT ASSY
Парткод:	42158712

Деталь:	Control-panel assembly
Парткод:	42067501

Деталь:	FIXING ASSEMBLY
Парткод:	42158603

Деталь:	THERMISTOR FIXING
Парткод:	42303301

Деталь:	Top-cover assembly (HP LaserJet P2035)
Парткод:	42074501

Деталь:	Держатель и ролик подачи бумаги из кассеты, в сборе (лоток 2)
Парткод:	42051401

Деталь:	Ось ролика захвата бумаги из кассеты (лоток 2)
Парткод:	42050701

Деталь:	INTER. TRANSFER BELT ASSY
Парткод:	42158712

Деталь:	Control-panel assembly
Парткод:	42067501

Деталь:	FIXING ASSEMBLY
Парткод:	42158603

Деталь:	THERMISTOR FIXING
Парткод:	42303301

Деталь:	Top-cover assembly (HP LaserJet P2035)
Парткод:	42074501

Коды ошибок

001

002, 006, 007

020

023

030

031

035

040

041

042 ... 044

051

070

072

073

074

104

105

106

121

122

123

124

126

127

131 ... 134

142

150 ... 153

154

155

160 ... 163

170 ... 171

172, 173 ... 177

174

175

176

181, 182

190

200, 202

203, 204, 210, 214

209

220

901, 902

903, 904

905

906

907

908

FOC, F0D, FFE, FFF

Описание

Парткод

Название

OKI Блок фотобарабана желтый TYPE-C6

OKI Блок фотобарабана пурпурный TYPE-C6

OKI Блок фотобарабана голубой TYPE-C6

OKI Блок фотобарабана черный TYPE-C6

OKI (42127405) Тонер-картридж желтый большой емкости TYPE-C6

OKI (42127406) Тонер-картридж пурпурный большой емкости TYPE-C6

OKI (42127407) Тонер-картридж голубой большой емкости TYPE-C6

OKI (42127408) Тонер-картридж черный большой емкости TYPE-C6

OKI Термоблок (печка) 220V

OKI Ремень переноса

OKI Комплект тонер-картриджей TYPE C6 (CMYK)

Error code:	001
Display:	Service Call 001: Error
Description:	Leading edge of the recording paper fails to reach the Timing Sensor. (1st Cassette)
Causes:	Recording paper jam. Timing Sensor abnormal.
Remedy:	Is the error display reproducible? Power OFF/ON Replace CU PCB. (Must replace EEPROM)

Error code:	002, 006, 007
Display:	Power off/on 002:Error ~ 006:Error 007:Error(C5400 only)
Description:	CPU Exception
Remedy:	Does error display reappear? Power OFF/ON Replace ARC/SPA board.

Error code:	020
Display:	Service Call 020: Error
Description:	CU ROM Hash Check Error 1
Causes:	Is program ROM DIMM set properly? Is error recovered by replacing program ROM DIMM?
Remedy:	Reset program ROM DIMM. Replace program ROM DIMM. Replace TIG board. (Replace EEPROM)

Error code:	023
Display:	Service call 023: Error
Description:	CU Font ROM Hash error
Causes:	Does error display reappear?
Remedy:	Does this error message reappear? Yes Cycle the power. Replace the CU/ PU board.

Error code:	030
Display:	Service Call 030: Error
Description:	CU Slot1 DIMM RAM Check Error
Causes:	Is subject RAM DIMM set properly? Is error recovered by replacing subject ROM DIMM?
Remedy:	Reset subject RAM DIMM. Replace RAM DIMM. Replace TIG board. (Replace EEPROM)

Error code:	031
Display:	Service Call 031: Error
Description:	CU Slot2 DIMM RAM Check Error
Causes:	Is subject RAM DIMM set properly? Is error recovered by replacing subject ROM DIMM?
Remedy:	Reset subject RAM DIMM. Replace RAM DIMM. Replace TIG board. (Replace EEPROM)

Error code:	035
Display:	Service Call 035: Error
Description:	Slot1 RAM Spec Error. The CU RAM Slot1 DIMM specification is not supported.
Causes:	Is RAM DIMM genuine? Is subject RAM DIMM gap setting proper? Is error recovered by replacing subject ROM DIMM?
Remedy:	Use genuine RAM DIMM. Reset subject RAM DIMM. Replace RAM DIMM. Replace TIG board. (Replace EEPROM)

Error code:	040
Display:	Service Call 040: Error
Description:	CU EEPROM Error
Causes:	Is error recovered by replacing EEPROM on CU board?
Remedy:	Replace EEPROM. (Recover user environment.) Replace TIG board. (Replace EEPROM)

Error code:	041
Display:	Service Call 041: Error
Description:	CU Flash Error Flash ROM error on CU board.
Causes:	Does error display reappear?
Remedy:	Replace TIG board. (Replace EEPROM.)

Error code:	051
Display:	Service Call 051: Error
Description:	CU Fan Error Abnormal CPU cooling fan on CU board.
Causes:	Is connector set properly on CU board? Is error recovered by replacing fan?
Remedy:	Connect properly. Replace fan. Replace TIG board. (Replace EEPROM.)

Error code:	070
Display:	Service Call 070: Error
Description:	CANT_HAPPEN PS firmware fault detected.
Causes:	Confirm that error is recovered by turning power OFF/ON.
Remedy:	Replace TIG board. (Replace EEPROM.)

Error code:	072
Display:	Service Call 072: Error
Description:	Engine communication error I/F error between PU-CU.
Causes:	Is CU assembly set properly? Is error recovered by replacing TIG board?
Remedy:	Set properly. Replace TIG board. (Replace EEPROM.) Replace PU board.

Error code:	073
Display:	Reboot the printer. 073: Error xxxxxxxx
Description:	Video Error Error is detected when expanding the video data. (Illegal data is received.)
Remedy:	Is the CU assembly installed normally? Does this error recur? Re-install the CU assembly normally. Change the PC with another PC having high specifications, or alternately reduce resolution power and execute the print again. Replace the CU board. Replace the interface cable. Re-install the PC Printer driver. Is the CU assembly installed normally? Does this error recur? Does the error depend on print Data? Re-install the CU assembly normally. Execute the print again. Print any other data. Replace the CU board. Send the data to design division and request analysis of the data.

Error code:	074
Display:	POWER OFF/ON 074:Error xxxxxxxx 075:Error xxxxxxxx
Description:	F/W Overrun detect
Causes:	Is CU assembly set properly?

Error code:	104
Display:	Service Call 104: Error
Description:	Developer Motor Failure The Developer Motor rotation signal indicates that the motor is no longer operational.
Causes:	• Developer Drive Assembly, PL8.1.1 • Engine Control Board, PL9.1.16 • Interlock Switch, PL9.1.11 • FAN/PHD/MOT Harness, PL10.1.9
Remedy:	1 Check the Developer Drive Assembly for damage. Are any parts of the Developer Drive Assembly damaged or excessively worn? Replace the Developer Drive Assy. Go to Step 2. 2 Check the Developer Motor connection. Is P/J491 connected to the harness? Go to Step 3. Reconnect the Developer Motor. 3 Test the Developer Motor. 1. Close the Interlock Switch while testing. 2. Run the Service Diagnostics Developer Motor test. Does the motor operate? Go to Step 5. Go to Step 4. 4 Check for +24 V to the Developer Motor. Is the +24 V across P/J491-1 <=> P/J 481-5? Go to Step 6. Go to Step 5. 5 Test the Interlock Switch. Run the Service Diagnostics Interlock Switch test. Does the switch function correctly? Go to Step 6. Replace the Interlock Switch. 6 Check all pins on the FAN/PHD/MOT Harness PL10.1.9 for continuity. 1. Disconnect P/J48 and P/J491. 2. Check continuity between J48 <=> J491. Replace the Engine Control Board. Replace the FAN/PHD/MOT Harness.

Error code:	105
Display:	Service Call 105: Error
Description:	Main Motor Failure The Main Motor rotation signal indicates that the motor is no longer operational.
Causes:	• Main Drive Assembly, PL8.1.2 • Engine Control Board, PL9.1.16 • FAN/PHD/MOT Harness, PL10.1.9
Remedy:	1 Check the Main Drive Assembly for damage. Are any parts damaged? Replace the Main Drive Assembly. Go to Step 2. 2 Check the Main Motor connection. Is P/J481 connected to the harness? Go to Step 3. Reconnect the Main Motor. 3 Test the Main Motor. 1. Close the Interlock Switch while testing. 2. Run the Service Diagnostics Main Motor test. Does the motor operate? Go to Step 5. Go to Step 4. 4 Check for +24 V to the Main Motor. Is there +24 V across P/J481-10 <=> P/J 481-8? Go to Step 6. Go to Step 5. 5 Test the Interlock Switch. Run the Service Diagnostics Interlock Switch test. Does the switch function correctly? Go to Step 6. Replace the Interlock Switch. 6 Check all pins on the FAN/PHD/MOT Harness, PL10.1.9 for continuity. 1. Disconnect P/J48 and P/J481. 2. Check continuity between J48 <=> J481. Replace the Engine Control Board. Replace the FAN/PHD/MOT Harness.

Error code:	106
Display:	Service Call 106: Error
Description:	Motor Failure One of the primary drive motors has failed.
Causes:	• Main Drive Assembly, PL8.1.2 • Developer Drive Assembly, PL8.1.1 • Fuser Drive Assembly, PL5.2.25 • Engine Control Board, PL9.1.16 • Interlock Switch, PL9.1.11
Remedy:	1 Check the motors. Run the Service Diagnostics motor tests to determine the failed part. Is the failed part the Main Drive Motor? Go to. Test the Fuser Motor. 2 Is the failed part the Fuser Drive Motor? Go to. Test the Developer Motor. 3 Is the failed part the Developer Drive Motor? Go to. Replace the Engine Control Board.

Error code:	121
Display:	Service Call 121: Error
Description:	Fuser Error
Causes:	Is cable between PU board andhighvoltage power LSI connected properly?
Remedy:	Wrong fuser lamp - BUR - replace the fuser assembly

Error code:	122
Display:	Service Call 122: Error
Description:	Finisher Decurler Failure, Code 122 The level of the Decurler Cam Home Sensor did not change 4 seconds after the Decurler Cam Clutch has turned on.
Causes:	• Decurler Cam Clutch • Stacker Motor • Finisher Control Board
Remedy:	1 1. Rotate the actuator while running the Decurler Cam Position test in diagnostics. 2. Does the value change between H and L? Go to step 2. Troubleshoot using the transmissive sensor procedure. 2 Does the decurler cam clutch operate in diagnostics? Check for a mechanical problem with the decurler cam clutch drive. If no problem is found replace the clutch. Go to step 3. 3 Is +24 VDC present at P/J 849-1? Replace the decurler cam clutch. Go to step 4. 4 Is +24 VDC present at test point 5 on the finisher control board? Replace the finisher control board. Troubleshoot the +24 VDC interlock circuit. 5 Is +24 VDC present at P/J 847-11 with the Finisher Stacker Motor Down test running in diagnostics? Replace the stacker motor. Replace the finisher control board

Error code:	123
Display:	Service Call 123: Error
Description:	Finisher Set Clamp Failure, Code 123 The set clamp home sensor did not turn on within 2 seconds after the set clamp started operation.
Causes:	• Set Clamp Solenoid • Finisher Control Board
Remedy:	1 1. Check the Set Clamp home sensor in diagnostics. 2. Does the value change from H to L while rotating the actuator? Go to step 2. Use the transmissive Sensor procedure to diagnose and repair the sensor. 2 Does the solenoid energize when running the Set Clamp Paddle test in diagnostics? Go to step 3. Go to step 4. 3 1. Run the Eject Forward Test and then the Eject Release Test in diagnostics. 2. Does the set clamp paddle turn once? Replace the finisher control board. Go to step 4. 4 Is +24 VDC present at P848A-10? Go to step 5. Go to step 6. 5 Is +24 VDC present at P848A-11? Replace the finisher control board. Replace the set clamp solenoid. 6 Is +24 VDC present at test point 9 on the finisher control board? Replace the finisher control board. Troubleshoot and repair the +24 VDC interlock circuit.

Error code:	124
Display:	Service Call 124: Error
Description:	Finisher Communication Failure, Code 124
Remedy:	There are no diagnostic routines for problems involving serial communications. It is recommended that you address the following assemblies in this order: • Finisher Control Board • Engine Control Board • Perform continuity checks on any wiring harnesses involved.

Error code:	126
Display:	Turn power OFF and wait 126: Dew error
Description:	Fuser Error
Causes:	Sensor dew error detected.
Remedy:	Fuser open thermistor hot roll

Error code:	127
Display:	Contact the Service center. 127: Error
Description:	Fuser Error
Causes:	• Scanner motor defective (motor lead connected incorrectly) • MCU board defective (scanner motor control unit)
Remedy:	Fuser open thermistor BUR

Error code:	142
Display:	Contact the Service center. 142: Error
Description:	Motor
Causes:	• Standard white plate defective, dirty • Moisture inside the scanner unit • SBU to IPU harnesses defective • BCU to IPU harnesses defective • SBU defective • IPU defective • BCU defective
Remedy:	DC pick motor, over speed - staging motor - replace the “Staging motor”. If this does not fix the problem, replace the “System board”.

Error code:	154
Display:	Service Call 154: Error
Description:	Jam at Registration Roller: Jam RR The Registration Sensor indicates that paper did not reach the sensor on time or that paper remains in the Registration Chute.
Causes:	• Registration Sensor, PL4.1.3 • Registration Sensor Actuator, PL4.1.1 • Registration Roller Assembly, PL4.2.1
Remedy:	1 Check the following for damage. • Registration Sensor Actuator, PL4.1.1 • Registration Roller Assembly, PL4.2.1 Is there any damage? Clean or replace as needed. Go to Step 2. 2 Test the Registration Sensor. Run the Service Diagnostics Registration Sensor test. Does the sensor function correctly? Go to Step 6. Go to Step 3. 3 Check the Registration Sensor connection. Is the Registration Sensor connected to the harness? Go to Step 4. Reconnect. 4 Check all pins on the REGISNS Harness PL 4.1.4 for continuity. 1. Disconnect P/J181 and P/J18. 2. Check continuity between J181 <=> J18. Go to Step 5. Replace the Registration Sensor Harness. 5 Check the Registration Sensor signal. Block the Registration Sensor. Verify the voltage between P/J18-3 <=> P/J18-2 on the Engine Control Board is 0 VDC. Go to Step 6. Replace the Registration Sensor. 6 Test the Registration Clutch. 1. Close the Interlock Switch while testing. 2. Run the Service Diagnostics Registration Clutch test. Does the clutch function correctly? Go to Step 8. Go to Step 7. 7 Check the Registration Clutch resistance. Disconnect connector P/J192. Is the resistance between J192-1 <=> J192-2 less than 200ƒ¶? Go to Step 8. Replace the Registration Clutch (Part of the Registration Roller Assembly) 8 Check for +24 V to the Registration Clutch. 1. Disconnect P/J192. 2. Close the Interlock Switch while testing. Is there +24 V across P192-3 <=> ground? Replace the Registration Chute. Replace the Engine Control Board.

OKI C5100N

Общие характеристики

Технология печати

Число страниц в месяц

Область применения

Тип

Тип устройства

Печать фотографий

Копир

Сканер

Факс

Телефон

Макс. формат

Цветность печати

Размещение

Принтер

Количество цветов

Прямая печать

Печать без полей

Пигментные чернила

Двусторонняя печать

Макс, разрешение для ч/б печати

Скорость ч/б печати

Время выхода первого отпечатка

Сканер

Стандарт WIA

Стандарт TWAIN

Отправка изображения по e-mail

Слайд-адаптер

Скорость сканирования

Расходные материалы

Ресурс цветного картриджа/тонера

Ресурс ч/б картриджа/тонера

Количество картриджей

Печать на:

Плотность бумаги

Факс

Цветной

Телефон

Проводная трубка

АОН

Caller ID

Автоответчик

Стандарт DECT

Спикерфон

Беспроводная трубка

Языки управления

Лотки

Емкость лотка ручной подачи

Подача бумаги

Вывод бумаги

Финишер

Степлер

Брошюровщик

Сортер

Интерфейсы

USB

Ethernet (RJ-45)

RS-232

Инфракрасный порт

FireWire (IEEE 1394)

Wi-Fi

Bluetooth

LPT

Устройство для чтения карт памяти

Память/Процессор

Макс, объем памяти

Частота процессора

Объем памяти

Дополнительная информация

Поддержка ОС

Уровень шума

Габариты

Глубина

Ширина

Высота

Вес

Модули

Детали None

Коды ошибок

Error code:	155
Display:	Service Call 155: Error
Description:	Misfeed at Tray 1 (MPT): Jam T1 Paper fed from Tray 1 (MPT) did not reach the Registration Sensor on time.
Causes:	• Feed Roller Assembly MPT, PL5.3.20 • Interlock Switch, PL9.1.11 • Registration Sensor, PL4.1.3 • Feed Solenoid, PL5.3.9 • Registration Roller Assembly, PL4.2.1 • Main Drive Assembly, PL8.1.2
Remedy:	1 Check the following for evidence of fault or damage: • Feed Roller Assembly MPT, PL5.3.20 • Tray 1 (MPT) • Registration Sensor, PL4.1.3 • Main Drive Assembly, PL8.1.2 Remove any foreign objects or paper debris from the paper path. Is there any damage? Replace any damaged or excessively worn parts. Go to Step 2. 2 Test the Registration Sensor. Run the Service Diagnostics Registration Sensor test. Does the sensor function correctly? Go to Step 6. Go to Step 3. 3 Check the Registration Sensor connection. Is the Registration Sensor connected to the harness? Go to Step 4. Connect the sensor. 4 Check all pins of the REGISNR Harness PL4.1.4 for continuity. 1. Disconnect P/J181 and P/J18. 2. Check continuity between J181 <=> J18. Go to Step 5. Replace the Registration Sensor Harness. 5 Check the Registration Sensor signal. Block the Registration Sensor. Verify the voltage between P/J18-3 <=> P/J18-2 on the Engine Control Board is 0 VDC. Replace Registration Sensor. Go to Step 6. 6 If possible, print a Test Print from Tray 1 (MPT). Does the Main Motor function properly? Go to Step 16 Go to Step 7 7 Test the Main Drive Assembly. Run the Service Diagnostics Main Motor test. Does the Main Motor turn? Replace the Engine Control Board. Go to Step 8. 8 Check for +24 V to the Main Drive Motor 1. Disconnect P/J481. 2. Close the Interlock Switch while testing. Is there +24 V across J481-10 <=> J481-8? Go to Step 12. Go to Step 9. 9 Test the Interlock Switch. Run the Service Diagnostics Interlock Switch test. Does the Interlock Switch function correctly? Go to Step 11. Go to Step 10. 10 Check for +5 V to the Interlock Switch Disconnect P/J161. Is there +5 V across P161-1 <=> P161-2? Replace the LVPS. Replace the Interlock Switch. 11 Check FAN/PHD/MOT Harness continuity. 1. Disconnect P/J48 and P/J481. 2. Check continuity between J48 <=> J481 Replace Main Drive Motor Replace FAN/ PHD/MOT Harness. 12 Check Turn Roller function. 1. Perform Steps 1 ~ 3 on. 2. Open and close the front door. 3. Observe the Turn Roller. Does the Turn Roller turn while the machine is warming up? Go to Step 16. Go to Step 13. 13 Test the Turn Clutch. 1. Run the Service Diagnostics Tray 1 (MPT) Turn Clutch test. 2. Close the Interlock Switch while testing. Does the Turn Clutch function normally? Check that the Clutch doesn’t slip. Check the gears for damage. Go to Step 14. 14 Check for +24 V to the Turn Clutch. 1. Disconnect P/J191. 2. Close the Interlock Switch while testing. Is there +24 V across P191-2 <=> ground? Go to Step 15. Replace the Engine Control Board. 15 Check Turn Clutch resistance. Disconnect P/J191. Is the resistance between J191-1 <=> J191-2 less than 200Ω? Go to Step 16. Replace the Turn Clutch (Part of the Registration Roller Assembly). 16 If possible, print a Test print from Tray 1 (MPT). Check the Feed Gear operation. Does the gear function normally? Check for damage or obstructions in the paper path. Go to Step 17. 17 Test the Feed Solenoid. 1. Close the Interlock Switch while testing. 2. Run the Service Diagnostics Tray 1 (MPT) Feed Solenoid test. Does the Feed Solenoid function normally? Check that the Feed Solenoid spring and stopper disengage correctly. Go to Step 18. 18 Check all pins on the FRONT/DUP Harness PL5.3.28 for continuity. 1. Disconnect P/J132 and P/J13. 2. Check continuity between J13 <=> P132. Go to Step 19. Replace the FRONT/DUP Harness Assembly. 19 Check Feed Solenoid resistance. Disconnect connector P/J132. Is the resistance between J132-1 <=> J132-2 less than 100Ω? Replace the Engine Control Board. Replace the Feed Solenoid.

Error code:	174
Display:	Contact the Service center. 174: Error
Description:	Motor
Causes:	Does this error recur?
Remedy:	Mirror motor lost lock - magenta - go to “Printhead diagnostics” on page 3-1. Note: Do not adjust or replace any printhead before performing checks in “Printhead diagnostics” on page 3-1.

Error code:	175
Display:	Contact the Service center. 175: Error Note)
Description:	Motor
Causes:	Does this error recur?
Remedy:	Mirror motor lock not achieved - yellow - go to “Printhead diagnostics” on page 3-1. Note: Do not adjust or replace any printhead before performing checks in “Printhead diagnostics” on page 3-1.

Error code:	176
Display:	Inspection is required. 176:Error
Description:	Wrong Paper Size; Load Tray 1 (MPT) with [size][type] Tray 1 (MPT) Paper Size mismatch error.
Causes:	• Tray 1 (MPT) No Paper Sensor, PL3.2.5
Remedy:	1 Check the Tray 1 (MPT) No Paper Sensor for evidence of fault or damage: Is there any damage? Replace any damaged parts. Go to Step 2. 2 Test the Tray 1 (MPT) No Paper Sensor Run the Service Diagnostics Tray 1 (MPT) No Paper Sensor test. Does the sensor function correctly? Go to Step 4. Go to Step 3. 3 Check all pins on the FRONT/DUP Harness for continuity. 1. Disconnect P/J13 and P/J135. 2. Check continuity between J13<=>J135. Go to Step 4. Replace the FRONT/DUP Harness. 4 Check the No Paper Sensor signal at the Engine Control Board. Is there 3.3V at P13-15 when actuated? Replace the No Paper Sensor Replace the Engine Control Board.

Error code:	190
Display:	Service Call 190: Error
Description:	System Memory Overflow
Remedy:	System Memory Overflow Power OFF/ON Replace CU PCB. (Replace EEPROM)

Error code:	209
Display:	Power On/off 209: DOWNLOAD ERROR
Description:	Custom Media Table Download Error Failed to download custom media table.
Remedy:	Failed to download custom media table. After turning ON the power again, try downloading again. (This process isn’t executed for regular operations, therefore, will not occur)

Error code:	220
Display:	Service Call 220: Error
Description:	Laser Synchronizing Detection Error: [K]/[Y]
Causes:	The laser synchronizing detection signal for LDB [K]/[Y] is not output after the LDB unit has turned on while the polygon motor is rotating normally.

Error code:	905
Display:	Service call 905:Error
Description:	Interface violation by Paperport device
Causes:	These errors indicate an unrecoverable system software error.
Remedy:	Replace the system board.

Error code:	906
Display:	Service call 906:Error
Description:	RIP interface driver error
Causes:	These errors indicate an unrecoverable system software error.
Remedy:	Replace the system board.

Error code:	907
Display:	Service call 907: Error
Description:	Engine Flash Error
Causes:	Does error reoccur?
Remedy:	Engine Flash Error - The system board might be causing the error code. Try the following: Reflash the system board with the correct level code. If this does not fix the problem, replace the system board.
