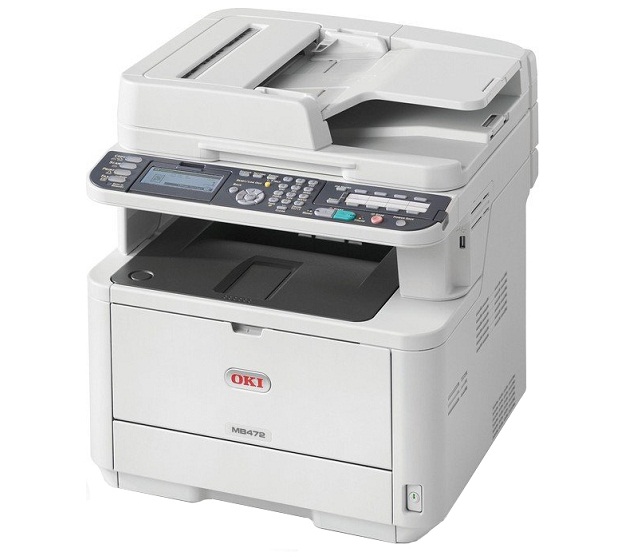

OKI MB472dnw

Рейтинг

Снят с производства

Тип устройства

МФУ

Технология печати

светодиодная

Макс. формат

Число страниц в месяц

60000

Скорость печати A4

Цветность печати

черно-белая

Общие характеристики
Область применения	средний офис
Число страниц в месяц	60 000
Технология печати	светодиодная
Цветность печати
Тип	лазерный/светодиодный
Печать фотографий
Телефон
Тип устройства	МФУ
Факс
Сканер
Копир
Размещение	настольный
Макс. формат	A4
Принтер
Время разогрева	60
Печать без полей
Система непрерывной подачи чернил
Прямая печать
Пигментные чернила
Макс, длина отпечатка	297
Макс, ширина отпечатка	216
Двусторонняя печать
Макс, разрешение для ч/б печати
По X	1 200
По Y	1 200
Скорость ч/б печати
A4	33
Время выхода первого отпечатка
Ч/б	5
Копир
Макс, количество копий за цикл	99
Время выхода первой копии	10
Значение масштаба
Максимальное	4
Минимальное	0,25
Макс, разрешение (ч/б)
По X	600
По Y	600
Сканер
Емкость устройства автоподачи оригиналов	50
Тип сканера	планшетный/протяжный
Глубина цвета	48 бит
Устройство автоподачи оригиналов	двустороннее
Оттенки серого	256
Макс. формат оригинала	A4
Стандарт TWAIN
Отправка изображения по e-mail
Слайд-адаптер
Стандарт WIA
Макс, размер сканирования
По X	216
По Y	297
Разрешение сканера
По Х	600
Скорость сканирования
Цветн,	10
Ч/б	30
Расходные материалы
Ресурс фотобарабана	30 000
Ресурс ч/б картриджа/тонера	3 000
Количество картриджей	1
Печать на:
Глянцевой бумаге
Этикетках
Карточках
Пленках
Матовой бумаге
Конвертах
Фотобумаге
Рулоне
CD/DVD
Плотность бумаги
Минимальная	60
Максимальная	163
Факс
Память	200
Макс, скорость передачи данных	33,6 Кбит/с
Цветной
PC Fax
Телефон
Проводная трубка
Caller ID
Автоответчик
Стандарт DECT
Спикерфон
АОН
Беспроводная трубка
Шрифты и языки управления
Языки управления
PostScript	опционально
PCL 6
PCL 5e
PostScript 3
PCL 5c
PPDS
PostScript 2
PDF
Количество установленных шрифтов
PCL	87
Лотки
Подача бумаги
Стандартная	350
Максимальная	880
Вывод бумаги
Стандартный	150
Финишер
Сортировка со сдвигом
Сортер
Электронная сортировка
Степлер
Брошюровщик
Интерфейсы
Wi-Fi 802.11n
Wi-Fi
Ethernet (RJ-45)
AirPrint
USB
Поддержка iOS
Веб-интерфейс
FireWire (IEEE 1394)
Bluetooth
LPT
Инфракрасный порт
RS-232
Устройство для чтения карт памяти
Версия USB	2,0
Память/Процессор
Макс, объем памяти	512
Объем памяти	512
Частота процессора	667
Дополнительная информация
Экран
Работа от аккумулятора
Поддержка ОС
Linux
Mac OS
Windows
DOS
Потребляемая мощность
В режиме ожидания	95
При работе	950
Уровень шума
При работе	53
В режиме ожидания	30
Габариты
Вес	20
Ширина	427
Высота	455
Глубина	425

Модули

PAPER FEED

Детали PAPER FEED

$oki\44384701.jpg$

Деталь:	Ролик отделения бумаги в держателе, в сборе
Парткод:	44384701
Цена:	3 600 ₽

Деталь:	Ролик отделения бумаги в кассете
Парткод:	44483301
Цена:	2 100 ₽

Деталь:	Ролик захвта бумаги из кассеты, в сборе
Парткод:	44483601
Цена:	2 400 ₽

Деталь:	Ricoh FT4420
Парткод:	44559001

$oki\43963101.jpg$

Деталь:	Пружина держателя ролика отделения бумаги в кассете
Парткод:	43963101

Коды ошибок

002 ... 005

024

030

040

042, 043, 045

049

054

057

058

062

064

069

070

072

073

075

080

081

085

104

106

112

121

122

123

124

127

128

134

153

163

167

170, 171

172, 173

182

190

200, 201, 202

203, 204, 207, 208

209

213, F0C, FFE, FFF

231

250

251

802 ... 808

811, 812, 813

814

890

899

923

933

941, 942, 943

946

980

Описание

Парткод

44574302

45807119

45807120

Название

OKI Блок фотобарабана черный

OKI B432 Тонер-картридж черный (3000 стр.)

OKI B432 Тонер-картридж черный (7000 стр.)

Error code:	002 ... 005
Display:	Restart the printer. 002: Error~ 005: Error
Description:	CPU Exception
Remedy:	Does the error display recur? If the RAM DIMM is installed, remove it and turn off the power of the printer and back on. Replace the CU board. Re-install the RAM DIMM. Replace the RAM DIMM.

Error code:	024
Display:	Service Call 024:Error
Description:	CU Font ROM Hash Error
Causes:	Does this error message reappear?
Remedy:	Does this error message reappear? Yes Power OFF/ON. Replace the printer control PCB.

Error code:	030
Display:	Service Call 030: Error
Description:	CU Slot1 DIMM RAM Check Error
Causes:	Is subject RAM DIMM set properly? Is error recovered by replacing subject ROM DIMM?
Remedy:	Reset subject RAM DIMM. Replace RAM DIMM. Replace TIG board. (Replace EEPROM)

Error code:	040
Display:	Service Call 040: Error
Description:	CU EEPROM Error
Causes:	Is error recovered by replacing EEPROM on CU board?
Remedy:	Replace EEPROM. (Recover user environment.) Replace TIG board. (Replace EEPROM)

Error code:	042, 043, 045
Display:	Contact the Service center. 042: Error~ 043: Error 045: Error
Description:	Flash File System Error
Remedy:	Failed to access to the Flash ROM that is directly soldered to the CU board. Turn off the power of the printer and back on. Replace the CU board.

Error code:	049
Display:	Service Call 049: Error
Description:	CU type mismatch CU ROM does not match with the device.
Causes:	Is proper program ROM set?
Remedy:	Replace program ROM DIMM. Replace with proper program ROM DIMM.

Error code:	054
Display:	Power OFF/ON 054 : Error
Description:	HSYNC abnormal. Motor abnormal.
Causes:	Defective Laser Unit.
Remedy:	Record a value displayed far right at the bottom of LCD and turn on the power unit again.

Error code:	057
Display:	Power OFF/ON 057 : Error
Description:	The timeout of command communication of the scanner The timeout of command communication was detected between the Controller and scanner unit (A sub code indicates a cause). 01: There is no ACK for a command to start scanning. 02: There is no ACK for a command to cancel scanning. 03: There is no ACK for a command to cancel SU.
Remedy:	Record a value displayed far right at the bottom of LCD and turn off/on the power unit.

Error code:	058
Display:	Power OFF/ON 058 : Error
Description:	An error of the scanner controlling area An internal error was detected in the scanner controlling area ofthe Controller.
Remedy:	Record a value displayed far right at the bottom of LCD and turn off/on the power unit.

Error code:	062
Display:	Power Off/on 062: Error
Description:	USB Drive Error
Causes:	Is the error display reproducible? Is the Network PCB properly mounted?
Remedy:	Is the error display reproducible? Is the Network PCB properly mounted? Power OFF/ON Replace CU PCB. (Replace EEPROM)

Error code:	064
Display:	Inspection is required. 064 : Error
Description:	SD Card Missing Error
Remedy:	Is a SD Card installed in the unit, properly? No Reinstall the SD card.

Error code:	069
Display:	Service Call 069:Error
Description:	Malfunction of the NIC chip was detected.
Causes:	Does this error recur?
Remedy:	Does this error recur? Yes Power OFF/ON. Replace the printer control PCB.

Error code:	070
Display:	Service Call 070: Error
Description:	CANT_HAPPEN PS firmware fault detected.
Causes:	Confirm that error is recovered by turning power OFF/ON.
Remedy:	Replace TIG board. (Replace EEPROM.)

Error code:	072
Display:	Service Call 072: Error
Description:	Engine communication error I/F error between PU-CU.
Causes:	Is CU assembly set properly? Is error recovered by replacing TIG board?
Remedy:	Set properly. Replace TIG board. (Replace EEPROM.) Replace PU board.

Error code:	073
Display:	Reboot the printer. 073: Error xxxxxxxx
Description:	Video Error Error is detected when expanding the video data. (Illegal data is received.)
Remedy:	Is the CU assembly installed normally? Does this error recur? Re-install the CU assembly normally. Change the PC with another PC having high specifications, or alternately reduce resolution power and execute the print again. Replace the CU board. Replace the interface cable. Re-install the PC Printer driver. Is the CU assembly installed normally? Does this error recur? Does the error depend on print Data? Re-install the CU assembly normally. Execute the print again. Print any other data. Replace the CU board. Send the data to design division and request analysis of the data.

Error code:	104
Display:	Service Call 104: Error
Description:	Developer Motor Failure The Developer Motor rotation signal indicates that the motor is no longer operational.
Causes:	• Developer Drive Assembly, PL8.1.1 • Engine Control Board, PL9.1.16 • Interlock Switch, PL9.1.11 • FAN/PHD/MOT Harness, PL10.1.9
Remedy:	1 Check the Developer Drive Assembly for damage. Are any parts of the Developer Drive Assembly damaged or excessively worn? Replace the Developer Drive Assy. Go to Step 2. 2 Check the Developer Motor connection. Is P/J491 connected to the harness? Go to Step 3. Reconnect the Developer Motor. 3 Test the Developer Motor. 1. Close the Interlock Switch while testing. 2. Run the Service Diagnostics Developer Motor test. Does the motor operate? Go to Step 5. Go to Step 4. 4 Check for +24 V to the Developer Motor. Is the +24 V across P/J491-1 <=> P/J 481-5? Go to Step 6. Go to Step 5. 5 Test the Interlock Switch. Run the Service Diagnostics Interlock Switch test. Does the switch function correctly? Go to Step 6. Replace the Interlock Switch. 6 Check all pins on the FAN/PHD/MOT Harness PL10.1.9 for continuity. 1. Disconnect P/J48 and P/J491. 2. Check continuity between J48 <=> J491. Replace the Engine Control Board. Replace the FAN/PHD/MOT Harness.

Error code:	106
Display:	Service Call 106: Error
Description:	Motor Failure One of the primary drive motors has failed.
Causes:	• Main Drive Assembly, PL8.1.2 • Developer Drive Assembly, PL8.1.1 • Fuser Drive Assembly, PL5.2.25 • Engine Control Board, PL9.1.16 • Interlock Switch, PL9.1.11
Remedy:	1 Check the motors. Run the Service Diagnostics motor tests to determine the failed part. Is the failed part the Main Drive Motor? Go to. Test the Fuser Motor. 2 Is the failed part the Fuser Drive Motor? Go to. Test the Developer Motor. 3 Is the failed part the Developer Drive Motor? Go to. Replace the Engine Control Board.

Error code:	112
Display:	SVC 112 ERROR
Description:	Printhead Error
Causes:	Incorrect color DTM installation, incorrect PCU installation, development bias error, MCU, LD control malfunction, loss of synchronization
Remedy:	No first Hysnc - yellow Check for the correct installation of all the cables to the system board assembly and to the printhead assembly; J7 and J8 on the system board. Go to “System board”. If the cables are connected correctly to the system board and to the printhead assembly, go to “Printhead diagnostics”. Note: Do not adjust or replace any printhead before performing checks in “Printhead diagnostics”

Error code:	122
Display:	Service Call 122: Error
Description:	Finisher Decurler Failure, Code 122 The level of the Decurler Cam Home Sensor did not change 4 seconds after the Decurler Cam Clutch has turned on.
Causes:	• Decurler Cam Clutch • Stacker Motor • Finisher Control Board
Remedy:	1 1. Rotate the actuator while running the Decurler Cam Position test in diagnostics. 2. Does the value change between H and L? Go to step 2. Troubleshoot using the transmissive sensor procedure. 2 Does the decurler cam clutch operate in diagnostics? Check for a mechanical problem with the decurler cam clutch drive. If no problem is found replace the clutch. Go to step 3. 3 Is +24 VDC present at P/J 849-1? Replace the decurler cam clutch. Go to step 4. 4 Is +24 VDC present at test point 5 on the finisher control board? Replace the finisher control board. Troubleshoot the +24 VDC interlock circuit. 5 Is +24 VDC present at P/J 847-11 with the Finisher Stacker Motor Down test running in diagnostics? Replace the stacker motor. Replace the finisher control board

Error code:	075
Display:	Power off/on 075: Error
Description:	An error was detected during image data expansion.
Causes:	Is the CU/PU installed properly?
Remedy:	Does this error recur? Yes Cycle the power. Replace the CU/ PU board.

Error code:	080
Display:	Power OFF/ON 080 : Error
Description:	Parameter I/O Error An access error occurred in a storage point of a parameter by file damage.
Causes:	Does this error recur?

Error code:	081
Display:	Service Call 081: Error
Description:	Parameter Match Check Error
Remedy:	Normal Read/Write not possible with EEPROM or Flash. If the condition does not change replace CU PCB.

Error code:	085
Display:	Inspection is required. 085 : Error
Description:	SD Card ECC Error An ECC error was detected by read processing of a SD memory card.

Error code:	121
Display:	Service Call 121: Error
Description:	Fuser Error
Causes:	Is cable between PU board andhighvoltage power LSI connected properly?
Remedy:	Wrong fuser lamp - BUR - replace the fuser assembly

Error code:	123
Display:	Service Call 123: Error
Description:	Finisher Set Clamp Failure, Code 123 The set clamp home sensor did not turn on within 2 seconds after the set clamp started operation.
Causes:	• Set Clamp Solenoid • Finisher Control Board
Remedy:	1 1. Check the Set Clamp home sensor in diagnostics. 2. Does the value change from H to L while rotating the actuator? Go to step 2. Use the transmissive Sensor procedure to diagnose and repair the sensor. 2 Does the solenoid energize when running the Set Clamp Paddle test in diagnostics? Go to step 3. Go to step 4. 3 1. Run the Eject Forward Test and then the Eject Release Test in diagnostics. 2. Does the set clamp paddle turn once? Replace the finisher control board. Go to step 4. 4 Is +24 VDC present at P848A-10? Go to step 5. Go to step 6. 5 Is +24 VDC present at P848A-11? Replace the finisher control board. Replace the set clamp solenoid. 6 Is +24 VDC present at test point 9 on the finisher control board? Replace the finisher control board. Troubleshoot and repair the +24 VDC interlock circuit.

Error code:	124
Display:	Service Call 124: Error
Description:	Finisher Communication Failure, Code 124
Remedy:	There are no diagnostic routines for problems involving serial communications. It is recommended that you address the following assemblies in this order: • Finisher Control Board • Engine Control Board • Perform continuity checks on any wiring harnesses involved.

Error code:	127
Display:	Contact the Service center. 127: Error
Description:	Fuser Error
Causes:	• Scanner motor defective (motor lead connected incorrectly) • MCU board defective (scanner motor control unit)
Remedy:	Fuser open thermistor BUR

Error code:	128
Display:	Service Call 128: Error
Description:	Fuser Error
Causes:	• Scanner motor defective • Overload on scanner mechanism • PSU-Eb board defective • MCU board defective (scanner motor control unit)
Remedy:	Fuser under temperature in standby - hot roll

Error code:	134
Display:	Service Call 134:Error
Description:	Fuser Error
Remedy:	Fuser lamp on too long hot roll

OKI MB472dnw

Общие характеристики

Область применения

Число страниц в месяц

Технология печати

Цветность печати

Тип

Печать фотографий

Телефон

Тип устройства

Факс

Сканер

Копир

Размещение

Макс. формат

Принтер

Время разогрева

Печать без полей

Система непрерывной подачи чернил

Прямая печать

Пигментные чернила

Макс, длина отпечатка

Макс, ширина отпечатка

Двусторонняя печать

Макс, разрешение для ч/б печати

Скорость ч/б печати

Время выхода первого отпечатка

Копир

Макс, количество копий за цикл

Время выхода первой копии

Значение масштаба

Макс, разрешение (ч/б)

Сканер

Емкость устройства автоподачи оригиналов

Тип сканера

Глубина цвета

Устройство автоподачи оригиналов

Оттенки серого

Макс. формат оригинала

Стандарт TWAIN

Отправка изображения по e-mail

Слайд-адаптер

Стандарт WIA

Макс, размер сканирования

Разрешение сканера

Скорость сканирования

Расходные материалы

Ресурс фотобарабана

Ресурс ч/б картриджа/тонера

Количество картриджей

Печать на:

Плотность бумаги

Факс

Память

Макс, скорость передачи данных

Цветной

PC Fax

Телефон

Проводная трубка

Caller ID

Автоответчик

Стандарт DECT

Спикерфон

АОН

Беспроводная трубка

Шрифты и языки управления

Языки управления

Количество установленных шрифтов

Лотки

Подача бумаги

Вывод бумаги

Финишер

Сортировка со сдвигом

Сортер

Электронная сортировка

Степлер

Брошюровщик

Интерфейсы

Wi-Fi 802.11n

Wi-Fi

Error code:	153
Display:	Service call 153: Error
Description:	Jam at Duplex: Jam D The Duplex Jam Sensor indicates that paper did not reach the sensor on time or that paper remains in the Chute Assembly Out.
Causes:	• Duplex Jam Sensor, PL5.4.1 • Jam Sensor Actuator, PL5.4.13 • Duplex Motor Assembly, PL5.4.5 • FRONT/DUP Harness, PL5.3.28 • Chute Assembly Out, PL5.3.1
Remedy:	1 Check the following for evidence of fault or damage: • Duplex Motor Assembly, PL5.4.5 • JAM Sensor Actuator, PL5.4.13 • Chute Assembly Out, PL5.3.1 Are there any defects? Replace any damaged part. Go to Step 2. 2 Test the Duplex Jam Sensor. Run the Service Diagnostics Jam Sensor test. Does the sensor function correctly? Go to Step 7. Replace the Duplex Jam Sensor and Go to Step 3. 3 Check printer function. Does the printer function correctly after replacing the Duplex Jam Sensor? Complete Go to Step 4. 4 Check the Duplex Jam Sensor signal. Block the Duplex Jam Sensor. Is the voltage across J133-1 <=> J133-2 0 V? Go to Step 6. Go to Step 5. 5 Check FRONT/DUP Harness continuity. 1. Disconnect P/J133 and P/J13. 2. Check continuity between J133 <=> J13 Go to Step 6. Replace the FRONT/DUP Harness. 6 Print a Test Print in Duplex mode Does the sheet reverse in the printer? Replace the Chute Assembly Out. Go to Step 7. 7 Test the Duplex Motor. 1. Close the Interlock Switch during the test. 2. Run the Service Diagnostics Duplex Motor test. Does the Duplex Motor function correctly? Replace the Chute Assembly Out. Go to Step 8. 8 Check for +24 V to the Duplex Motor. Disconnect P/J501. Is there +24 V across P501-6 <=> ground? Go to Step 9. Replace the Engine Control Board. 9 Check all pins on the FRONT/DUP Harness PL5.3.28 for continuity. 1. Disconnect P/J13 and P/J501. 2. Check continuity between J13 <=> P501. Got to Step 10. Replace the FRONT/DUP Harness. 10 Replace the Duplex Motor. Does the error persist? Replace the Engine Control Board. Complete

Error code:	163
Display:	Service Call 163:Error
Description:	Motor
Remedy:	Magenta cartridge BLDC motor mfg. unknown - go to “163 error code” on page 2-65.

Error code:	167
Display:	Service Call 167: Error
Description:	Motor
Causes:	Is the error message displayed? Does this error recur?
Remedy:	The incorrect configuration ID. See “Web oiler fuser kit installation” on page 4-88 to set configuration ID.

Error code:	182
Display:	Service call 182: Error
Description:	I/F Error, Loc: Tray2
Causes:	• Scanner unit harness loose, defective • Fan, MCU harness loose, defective • SBU Fan motor defective • MCU defective • SIB defective

Error code:	190
Display:	Service Call 190: Error
Description:	System Memory Overflow
Remedy:	System Memory Overflow Power OFF/ON Replace CU PCB. (Replace EEPROM)

Error code:	209
Display:	Power On/off 209: DOWNLOAD ERROR
Description:	Custom Media Table Download Error Failed to download custom media table.
Remedy:	Failed to download custom media table. After turning ON the power again, try downloading again. (This process isn’t executed for regular operations, therefore, will not occur)

Error code:	231
Display:	Service Call 231: Error
Description:	FGATE OFF error: Bk • The PFGATE ON signal still asserts within 5 seconds after processing the image in normal job or MUSIC for end position [K]. • The PFGATE ON signal still asserts when the next job starts.
Causes:	• Defective ASIC (Lupus) • Poor connection between controller and EGB. • Defective EGB
Remedy:	1. Check the connection between the controller board and the BCU. 2. Replace the BCU. 3. Replace the controller board.

Error code:	250
Display:	Service Call 250: Error
Description:	Paper Jam Clear Paper Path Leave Job in Finisher area 5
Causes:	• Disconnected or defective harness to synchronizing detector for start position • Defective laser synchronizing detector for start position • Defective LDB
Remedy:	Primary: Paper is jammed in the MPF. Secondary: If sheets have been accumulated to be stapled when the jam is detected, the printer alternately flashes the primary and secondary messages indicating the accumulated sheets should not be removed during jam clearing. Note: When the secondary message is displayed, if the accumulated sheets are removed the printer will not reprint these sheets. Also if the print job is completed, the portion of the job printed after the jam will not be stapled. If removing the jammed media does not fix the problem, go to “250 Paper Jam” on page 2-78.

Error code:	251
Display:	SVC 251 ERROR
Description:	DMA circuit cut-in error
Causes:	• Disconnected or defective harness to synchronizing detector for start position • Defective laser synchronizing detector for start position • Defective LDB
Remedy:	Replace the Controller board.

Error code:	814
Display:	PRESS POWER SW FOR 5SEC Error : 814
Description:	SU FW Removed It is an error to notify that SU FW was erased by special key operation from a panel.
Remedy:	It is an error to notify that SU FW was erased by special key operation from a panel.
