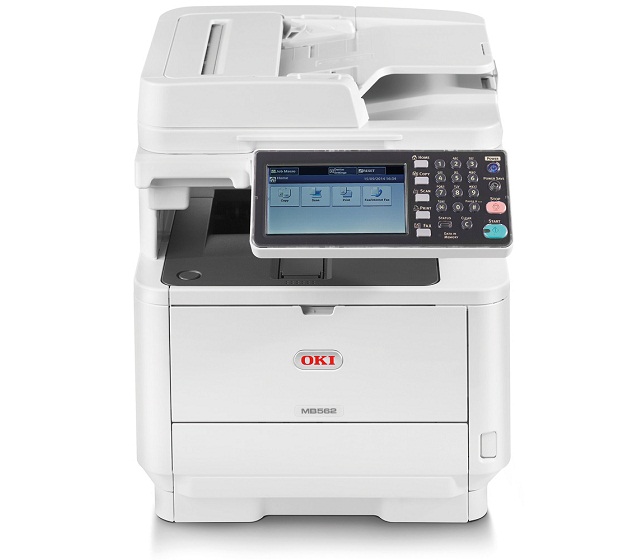

OKI MB562dnw

Рейтинг

Снят с производства

Тип устройства

МФУ

Технология печати

светодиодная

Макс. формат

Число страниц в месяц

100000

Скорость печати A4

Цветность печати

черно-белая

Общие характеристики
Макс. формат	A4
Область применения	большой офис
Технология печати	светодиодная
Число страниц в месяц	100 000
Размещение	настольный
Тип устройства	МФУ
Сканер
Копир
Факс
Печать фотографий
Телефон
Тип	лазерный/светодиодный
Цветность печати
Принтер
Время разогрева	60
Пигментные чернила
Система непрерывной подачи чернил
Печать без полей
Прямая печать
Двусторонняя печать
Макс, разрешение для ч/б печати
По X	1 200
По Y	1 200
Скорость ч/б печати
A4	45
Время выхода первого отпечатка
Ч/б	4,5
Копир
Макс, количество копий за цикл	99
Время выхода первой копии	10
Значение масштаба
Максимальное	4
Минимальное	0,25
Макс, разрешение (ч/б)
По X	600
По Y	600
Скорость ч/б копирования
A4	37,5
Сканер
Глубина цвета	48 бит
Устройство автоподачи оригиналов	двустороннее
Макс. формат оригинала	A4
Отправка изображения по e-mail
Стандарт TWAIN
Оттенки серого	256
Тип сканера	планшетный/протяжный
Емкость устройства автоподачи оригиналов	50
Стандарт WIA
Слайд-адаптер
Макс, размер сканирования
По X	216
По Y	297
Разрешение сканера
По Х	600
Скорость сканирования
Ч/б	30
Цветн,	10
Расходные материалы
Ресурс фотобарабана	25 000
Количество картриджей	1
Ресурс ч/б картриджа/тонера	7 000
Печать на:
Рулоне
CD/DVD
Фотобумаге
Матовой бумаге
Конвертах
Глянцевой бумаге
Пленках
Этикетках
Карточках
Плотность бумаги
Максимальная	163
Минимальная	60
Факс
Цветной
Память	200
Макс, скорость передачи данных	33,6 Кбит/с
PC Fax
Телефон
Стандарт DECT
Caller ID
Автоответчик
Проводная трубка
Беспроводная трубка
АОН
Спикерфон
Шрифты и языки управления
Языки управления
PostScript 2
PCL 5c
PPDS
PCL 5e
PostScript 3
PCL 6
PostScript
PDF
Количество установленных шрифтов
PCL	87
PostScript	136
Лотки
Подача бумаги
Максимальная	1 160
Стандартная	630
Вывод бумаги
Стандартный	150
Финишер
Степлер
Брошюровщик
Сортер
Электронная сортировка
Сортировка со сдвигом
Интерфейсы
FireWire (IEEE 1394)
Bluetooth
LPT
Инфракрасный порт
RS-232
Устройство для чтения карт памяти
Версия USB	2,0
Ethernet (RJ-45)
Wi-Fi 802.11n
Веб-интерфейс
AirPrint
Поддержка iOS
Wi-Fi
USB
Память/Процессор
Частота процессора	667
Объем памяти	512
Макс, объем памяти	512
Дополнительная информация
Работа от аккумулятора
Экран
Диагональ дисплея	7
Поддержка ОС
DOS
Linux
Mac OS
Windows
Потребляемая мощность
В режиме ожидания	95
При работе	950
Уровень шума
При работе	56
В режиме ожидания	30
Габариты
Глубина	478
Высота	496
Ширина	427
Вес	22

Модули

PAPER FEED

Детали

Деталь:	Ролик отделения бумаги в кассете
Парткод:	44483301
Цена:	2 100 ₽

Деталь:	Ролик захвта бумаги из кассеты, в сборе
Парткод:	44483601
Цена:	2 400 ₽

Коды ошибок

002, 003, 005, FFF

030

040

042, 043

067

069

070

072

073

075

077

078

081

098

104

106

112

121

122

123

124

126

127

128

182

190

203 ... 214

209

230

231

250

251

813

923

933

941 ... 946

982

984

Описание

Парткод

Название

OKI Блок фотобарабана черный

OKI B432 Тонер-картридж черный (3000 стр.)

OKI B432 Тонер-картридж черный (7000 стр.)

(45807111) OKI B432HY Тонер-картридж черный (12000 стр.)

Error code:	002, 003, 005, FFF
Display:	Power OFF/ON 002 : Error 003 : Error 005 : Error FFF : Error
Description:	CPU Exception
Causes:	Is the error display provided again?
Remedy:	Turn off and on the MFP. Replace the CU/ PU board.

Error code:	030
Display:	Service Call 030: Error
Description:	CU Slot1 DIMM RAM Check Error
Causes:	Is subject RAM DIMM set properly? Is error recovered by replacing subject ROM DIMM?
Remedy:	Reset subject RAM DIMM. Replace RAM DIMM. Replace TIG board. (Replace EEPROM)

Error code:	040
Display:	Service Call 040: Error
Description:	CU EEPROM Error
Causes:	Is error recovered by replacing EEPROM on CU board?
Remedy:	Replace EEPROM. (Recover user environment.) Replace TIG board. (Replace EEPROM)

Error code:	042, 043
Display:	Service call 042: Error 043: Error
Description:	Flash File System Error It failed to the access to CU Flash ROM that is attached to the 86M board directly.
Causes:	Accessing the flash ROM directly mounted on the CU/ PU board failed.
Remedy:	It failed to the access to CU Flash ROM that is attached to the 86M board directly. The compulsive initialization of Flash is done. (Because NICFirmware is deleted, please be careful to it. After initialization, it is necessary to write NIC-Firmware by the maintenance utility).FLASH FORMAT is executed by using the maintenance utility.If the symptom doesn`t change, replace the 86M board.

Error code:	067
Display:	Service Call 067:Error
Description:	A communication error was detected during communication with the Sleep Mode interface monitoring program.
Causes:	Does this error recur?
Remedy:	A communication error was detected during communication with the Sleep Mode interface monitoring program. If power cycling does not solve the problem, maintenance by a service engineer is required.

Error code:	069
Display:	Service Call 069:Error
Description:	Malfunction of the NIC chip was detected.
Causes:	Does this error recur?
Remedy:	Does this error recur? Yes Power OFF/ON. Replace the printer control PCB.

Error code:	070
Display:	Service Call 070: Error
Description:	CANT_HAPPEN PS firmware fault detected.
Causes:	Confirm that error is recovered by turning power OFF/ON.
Remedy:	Replace TIG board. (Replace EEPROM.)

Error code:	072
Display:	Service Call 072: Error
Description:	Engine communication error I/F error between PU-CU.
Causes:	Is CU assembly set properly? Is error recovered by replacing TIG board?
Remedy:	Set properly. Replace TIG board. (Replace EEPROM.) Replace PU board.

Error code:	073
Display:	Reboot the printer. 073: Error xxxxxxxx
Description:	Video Error Error is detected when expanding the video data. (Illegal data is received.)
Remedy:	Is the CU assembly installed normally? Does this error recur? Re-install the CU assembly normally. Change the PC with another PC having high specifications, or alternately reduce resolution power and execute the print again. Replace the CU board. Replace the interface cable. Re-install the PC Printer driver. Is the CU assembly installed normally? Does this error recur? Does the error depend on print Data? Re-install the CU assembly normally. Execute the print again. Print any other data. Replace the CU board. Send the data to design division and request analysis of the data.

Error code:	075
Display:	Power off/on 075: Error
Description:	An error was detected during image data expansion.
Causes:	Is the CU/PU installed properly?
Remedy:	Does this error recur? Yes Cycle the power. Replace the CU/ PU board.

Error code:	077
Display:	Power Off/On 077:Error xx
Description:	Detected of abnormal condition during image data expansion
Causes:	Does this error recur?
Remedy:	Does this recur? Yes Power OFF/ON. Replace the printer control PCB

Error code:	078
Display:	Inspection is required. 078:Error
Description:	Communication Error with Operator Panel Unit
Causes:	Does this error recur?
Remedy:	Cycle the power. Replace the CU/PU board.

Error code:	081
Display:	Service Call 081: Error
Description:	Parameter Match Check Error
Remedy:	Normal Read/Write not possible with EEPROM or Flash. If the condition does not change replace CU PCB.

Error code:	098
Display:	Inspection is required. 098 : Error
Description:	Power Control Error

Error code:	104
Display:	Service Call 104: Error
Description:	Developer Motor Failure The Developer Motor rotation signal indicates that the motor is no longer operational.
Causes:	• Developer Drive Assembly, PL8.1.1 • Engine Control Board, PL9.1.16 • Interlock Switch, PL9.1.11 • FAN/PHD/MOT Harness, PL10.1.9
Remedy:	1 Check the Developer Drive Assembly for damage. Are any parts of the Developer Drive Assembly damaged or excessively worn? Replace the Developer Drive Assy. Go to Step 2. 2 Check the Developer Motor connection. Is P/J491 connected to the harness? Go to Step 3. Reconnect the Developer Motor. 3 Test the Developer Motor. 1. Close the Interlock Switch while testing. 2. Run the Service Diagnostics Developer Motor test. Does the motor operate? Go to Step 5. Go to Step 4. 4 Check for +24 V to the Developer Motor. Is the +24 V across P/J491-1 <=> P/J 481-5? Go to Step 6. Go to Step 5. 5 Test the Interlock Switch. Run the Service Diagnostics Interlock Switch test. Does the switch function correctly? Go to Step 6. Replace the Interlock Switch. 6 Check all pins on the FAN/PHD/MOT Harness PL10.1.9 for continuity. 1. Disconnect P/J48 and P/J491. 2. Check continuity between J48 <=> J491. Replace the Engine Control Board. Replace the FAN/PHD/MOT Harness.

Error code:	112
Display:	SVC 112 ERROR
Description:	Printhead Error
Causes:	Incorrect color DTM installation, incorrect PCU installation, development bias error, MCU, LD control malfunction, loss of synchronization
Remedy:	No first Hysnc - yellow Check for the correct installation of all the cables to the system board assembly and to the printhead assembly; J7 and J8 on the system board. Go to “System board”. If the cables are connected correctly to the system board and to the printhead assembly, go to “Printhead diagnostics”. Note: Do not adjust or replace any printhead before performing checks in “Printhead diagnostics”

Error code:	122
Display:	Service Call 122: Error
Description:	Finisher Decurler Failure, Code 122 The level of the Decurler Cam Home Sensor did not change 4 seconds after the Decurler Cam Clutch has turned on.
Causes:	• Decurler Cam Clutch • Stacker Motor • Finisher Control Board
Remedy:	1 1. Rotate the actuator while running the Decurler Cam Position test in diagnostics. 2. Does the value change between H and L? Go to step 2. Troubleshoot using the transmissive sensor procedure. 2 Does the decurler cam clutch operate in diagnostics? Check for a mechanical problem with the decurler cam clutch drive. If no problem is found replace the clutch. Go to step 3. 3 Is +24 VDC present at P/J 849-1? Replace the decurler cam clutch. Go to step 4. 4 Is +24 VDC present at test point 5 on the finisher control board? Replace the finisher control board. Troubleshoot the +24 VDC interlock circuit. 5 Is +24 VDC present at P/J 847-11 with the Finisher Stacker Motor Down test running in diagnostics? Replace the stacker motor. Replace the finisher control board

Error code:	123
Display:	Service Call 123: Error
Description:	Finisher Set Clamp Failure, Code 123 The set clamp home sensor did not turn on within 2 seconds after the set clamp started operation.
Causes:	• Set Clamp Solenoid • Finisher Control Board
Remedy:	1 1. Check the Set Clamp home sensor in diagnostics. 2. Does the value change from H to L while rotating the actuator? Go to step 2. Use the transmissive Sensor procedure to diagnose and repair the sensor. 2 Does the solenoid energize when running the Set Clamp Paddle test in diagnostics? Go to step 3. Go to step 4. 3 1. Run the Eject Forward Test and then the Eject Release Test in diagnostics. 2. Does the set clamp paddle turn once? Replace the finisher control board. Go to step 4. 4 Is +24 VDC present at P848A-10? Go to step 5. Go to step 6. 5 Is +24 VDC present at P848A-11? Replace the finisher control board. Replace the set clamp solenoid. 6 Is +24 VDC present at test point 9 on the finisher control board? Replace the finisher control board. Troubleshoot and repair the +24 VDC interlock circuit.

Error code:	124
Display:	Service Call 124: Error
Description:	Finisher Communication Failure, Code 124
Remedy:	There are no diagnostic routines for problems involving serial communications. It is recommended that you address the following assemblies in this order: • Finisher Control Board • Engine Control Board • Perform continuity checks on any wiring harnesses involved.

Error code:	106
Display:	Service Call 106: Error
Description:	Motor Failure One of the primary drive motors has failed.
Causes:	• Main Drive Assembly, PL8.1.2 • Developer Drive Assembly, PL8.1.1 • Fuser Drive Assembly, PL5.2.25 • Engine Control Board, PL9.1.16 • Interlock Switch, PL9.1.11
Remedy:	1 Check the motors. Run the Service Diagnostics motor tests to determine the failed part. Is the failed part the Main Drive Motor? Go to. Test the Fuser Motor. 2 Is the failed part the Fuser Drive Motor? Go to. Test the Developer Motor. 3 Is the failed part the Developer Drive Motor? Go to. Replace the Engine Control Board.

Error code:	121
Display:	Service Call 121: Error
Description:	Fuser Error
Causes:	Is cable between PU board andhighvoltage power LSI connected properly?
Remedy:	Wrong fuser lamp - BUR - replace the fuser assembly

Error code:	126
Display:	Turn power OFF and wait 126: Dew error
Description:	Fuser Error
Causes:	Sensor dew error detected.
Remedy:	Fuser open thermistor hot roll

Error code:	127
Display:	Contact the Service center. 127: Error
Description:	Fuser Error
Causes:	• Scanner motor defective (motor lead connected incorrectly) • MCU board defective (scanner motor control unit)
Remedy:	Fuser open thermistor BUR

Error code:	128
Display:	Service Call 128: Error
Description:	Fuser Error
Causes:	• Scanner motor defective • Overload on scanner mechanism • PSU-Eb board defective • MCU board defective (scanner motor control unit)
Remedy:	Fuser under temperature in standby - hot roll

Error code:	182
Display:	Service call 182: Error
Description:	I/F Error, Loc: Tray2
Causes:	• Scanner unit harness loose, defective • Fan, MCU harness loose, defective • SBU Fan motor defective • MCU defective • SIB defective

Error code:	190
Display:	Service Call 190: Error
Description:	System Memory Overflow
Remedy:	System Memory Overflow Power OFF/ON Replace CU PCB. (Replace EEPROM)

Error code:	209
Display:	Power On/off 209: DOWNLOAD ERROR
Description:	Custom Media Table Download Error Failed to download custom media table.
Remedy:	Failed to download custom media table. After turning ON the power again, try downloading again. (This process isn’t executed for regular operations, therefore, will not occur)

Error code:	230
Display:	Service Call 230: Error
Description:	Paper Jam Clear Paper Path Leave Job in Finisher area 5
Causes:	• Defective ASIC (Lupus) • Poor connection between controller and EGB. • Defective EGB
Remedy:	Primary: Paper has most likely jammed in the duplex option. Remove the duplex tray to access the jam. Secondary: If sheets have been accumulated to be stapled when the jam is detected, the printer alternately flashes the primary and secondary messages indicating the accumulated sheets should not be removed during jam clearing. Note: When the secondary message is displayed, if the accumulated sheets are removed the printer will not reprint these sheets. Also if the print job is completed, the portion of the job printed after the jam will not be stapled. If removing the jammed media does not fix the problem, go to “230 Paper Jam” on page 2-74.

Error code:	231
Display:	Service Call 231: Error
Description:	FGATE OFF error: Bk • The PFGATE ON signal still asserts within 5 seconds after processing the image in normal job or MUSIC for end position [K]. • The PFGATE ON signal still asserts when the next job starts.
Causes:	• Defective ASIC (Lupus) • Poor connection between controller and EGB. • Defective EGB
Remedy:	1. Check the connection between the controller board and the BCU. 2. Replace the BCU. 3. Replace the controller board.

OKI MB562dnw

Общие характеристики

Макс. формат

Область применения

Технология печати

Число страниц в месяц

Размещение

Тип устройства

Сканер

Копир

Факс

Печать фотографий

Телефон

Тип

Цветность печати

Принтер

Время разогрева

Пигментные чернила

Система непрерывной подачи чернил

Печать без полей

Прямая печать

Двусторонняя печать

Макс, разрешение для ч/б печати

Скорость ч/б печати

Время выхода первого отпечатка

Копир

Макс, количество копий за цикл

Время выхода первой копии

Значение масштаба

Макс, разрешение (ч/б)

Скорость ч/б копирования

Сканер

Глубина цвета

Устройство автоподачи оригиналов

Макс. формат оригинала

Отправка изображения по e-mail

Стандарт TWAIN

Оттенки серого

Тип сканера

Емкость устройства автоподачи оригиналов

Стандарт WIA

Слайд-адаптер

Макс, размер сканирования

Разрешение сканера

Скорость сканирования

Расходные материалы

Ресурс фотобарабана

Количество картриджей

Ресурс ч/б картриджа/тонера

Печать на:

Плотность бумаги

Факс

Цветной

Память

Макс, скорость передачи данных

PC Fax

Телефон

Стандарт DECT

Caller ID

Автоответчик

Проводная трубка

Беспроводная трубка

АОН

Спикерфон

Шрифты и языки управления

Языки управления

Количество установленных шрифтов

Лотки

Подача бумаги

Вывод бумаги

Финишер

Степлер

Брошюровщик

Сортер

Электронная сортировка

Сортировка со сдвигом

Интерфейсы

FireWire (IEEE 1394)

Bluetooth

LPT

Error code:	250
Display:	Service Call 250: Error
Description:	Paper Jam Clear Paper Path Leave Job in Finisher area 5
Causes:	• Disconnected or defective harness to synchronizing detector for start position • Defective laser synchronizing detector for start position • Defective LDB
Remedy:	Primary: Paper is jammed in the MPF. Secondary: If sheets have been accumulated to be stapled when the jam is detected, the printer alternately flashes the primary and secondary messages indicating the accumulated sheets should not be removed during jam clearing. Note: When the secondary message is displayed, if the accumulated sheets are removed the printer will not reprint these sheets. Also if the print job is completed, the portion of the job printed after the jam will not be stapled. If removing the jammed media does not fix the problem, go to “250 Paper Jam” on page 2-78.

Error code:	251
Display:	SVC 251 ERROR
Description:	DMA circuit cut-in error
Causes:	• Disconnected or defective harness to synchronizing detector for start position • Defective laser synchronizing detector for start position • Defective LDB
Remedy:	Replace the Controller board.

Error code:	813
Display:	PRESS POWER SW FOR 5SEC Error : 813
Description:	SU Communication Error
Causes:	Communication error between the Controller and the Scanner Unit is detected.
Remedy:	Turn off and on the MFP.

Error code:	923
Display:	Power Off/on 923: Error
Description:	Fuser Error
Remedy:	Fuser is too hot during printing or when printer is idle. 1 Fuser lamp (incorrect lamp/ 925 Service Error) Install the correct voltage and wattage lamp or fuser assembly. See “Fuser assembly removal”. If the correct fuser lamp is installed and the 925 error remains, the fuser may have reached standby temperature too quickly. Check that the line voltage is not exceeding the maximum rating for the printer. 2 Fuser lamp fuser top cover assembly Observe the lamp through the left side frame. If the lamp does not come on, do the following: • Remove the redrive assembly. • Remove the fuser assembly, disconnect the LVPS to fuser AC cable from the fuser assembly, and remove the fuser. See “Fuser assembly removal” • Verify that the lamp is installed correctly. If correct, check the continuity of the fuser top cover assembly by verifying the lamp contacts on the right contact assembly. If incorrect, check continuity of the fuser lamp. If incorrect, replace the lamp. If correct, replace the fuser top cover assembly. 3 LVPS LVPS to fuser AC cable CAUTION: When taking measurements for AC power, observe all safety precautions. Measure the AC line voltage between the two connectors on the fuser end of the LVPS to fuser AC cable. If the voltage is incorrect, turn the power off, and remove the LVPS. Measure the AC line voltage between pins CN1-1 and CN1-3 on the board. If correct, check the continuity of the LVPS to fuser AC cable. If incorrect, replace the cable. If the AC line voltage at CN1 is incorrect, check fuse F2. If the fuse is blown, replace the fuse. If the fuse is not blown, replace the LVPS assembly.

Error code:	933
Display:	Power Off/on 933: Error
Description:	Black Printhead Error
Remedy:	1 Check to ensure that the cables between the LED printhead and the printhead controller board as well as the cables between the printhead controller board and the printer controller board are properly connected. Are they properly connected? Go to step 2. Properly connect the cables. 2 Replace the LED printhead for the affected color. Did this resolve the problem? Problem solved. Replace the printhead controller board, and go to step 3. 3 Did replacement of the printhead controller board resolve the problem? Problem solved. Replace the printer controller board.

Error code:	982
Display:	Service call 982: Error
Description:	<device> Comm
Causes:	• Localization setting not specified (The main power switch is turned on for the first time after the NVRAM is replaced.) • Incorrect localization setting • Defective NVRAM
Remedy:	Communications error detected by the specified device.

Error code:	984
Display:	Service call 984: Error.
Description:	<device>
Causes:	• Controller (SIMAC) board defective • BICU defective • BICU/controller disconnected
Remedy:	Invalid command parameter received by the specified device. Note: Service errors 980 thru 984 <device> can be one of the following: system board, duplex, tray x (1, 2, 3, 4, or 5), envelope feeder or output bin.
