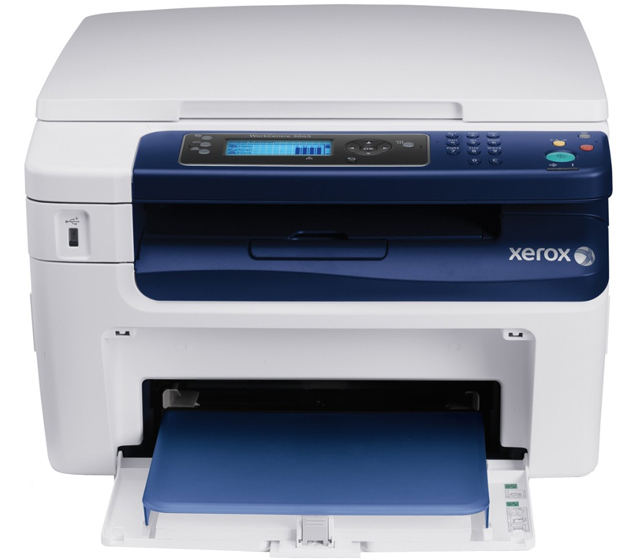

Xerox WorkCentre 6015B

Рейтинг

Снят с производства

Тип устройства

МФУ

Технология печати

светодиодная

Макс. формат

Число страниц в месяц

30000

Цветность печати

цветная

Общие характеристики
Цветность печати	цветная
Размещение	настольный
Макс. формат	A4
Тип устройства	МФУ
Тип	лазерный/светодиодный
Область применения	малый офис
Число страниц в месяц	30 000
Технология печати	светодиодная
Сканер
Телефон
Факс
Печать фотографий
Копир
Принтер
Система непрерывной подачи чернил
Прямая печать
Печать без полей
Двусторонняя печать
Пигментные чернила
Количество цветов	4
Макс, разрешение для ч/б печати
По Y	1 200
По X	2 400
Время выхода первого отпечатка
Цветн,	17
Ч/б	14
Копир
Время выхода первой копии	20
Значение масштаба
Максимальное	4
Минимальное	0,25
Макс, разрешение (ч/б)
По X	600
По Y	600
Скорость ч/б копирования
A4	12
Скорость цветного копирования
A4	15
Сканер
Стандарт TWAIN
Стандарт WIA
Отправка изображения по e-mail
Слайд-адаптер
Тип сканера	планшетный
Макс. формат оригинала	A4
Макс, размер сканирования
По Y	297
По X	216
Разрешение сканера
По Х	600
Расходные материалы
Ресурс ч/б картриджа/тонера	2 000
Ресурс цветного картриджа/тонера	1 000
Количество картриджей	4
Печать на:
Фотобумаге
Карточках
Пленках
Этикетках
Глянцевой бумаге
Конвертах
Матовой бумаге
Рулоне
CD/DVD
Плотность бумаги
Минимальная	60
Максимальная	163
Факс
Цветной
PC Fax
Телефон
Беспроводная трубка
Спикерфон
Стандарт DECT
Автоответчик
Caller ID
АОН
Проводная трубка
Языки управления
PostScript
PCL 6
PostScript 2
PDF
PPDS
PCL 5e
PCL 5c
PostScript 3
Лотки
Емкость лотка ручной подачи	10
Подача бумаги
Максимальная	160
Стандартная	160
Вывод бумаги
Максимальный	100
Стандартный	100
Финишер
Сортер
Электронная сортировка
Брошюровщик
Сортировка со сдвигом
Степлер
Интерфейсы
Версия USB	2,0
AirPrint
USB
Устройство для чтения карт памяти
Веб-интерфейс
RS-232
Инфракрасный порт
LPT
Bluetooth
Wi-Fi 802.11n
Wi-Fi
FireWire (IEEE 1394)
Ethernet (RJ-45)
Память/Процессор
Частота процессора	295
Объем памяти	128
Дополнительная информация
Экран
Работа от аккумулятора
Поддержка ОС
Windows
Linux
DOS
Mac OS
Потребляемая мощность
При работе	220
В режиме ожидания	34
Уровень шума
При работе	50
В режиме ожидания	23
Габариты
Ширина	410
Глубина	389
Вес	14,3
Высота	318

Модули

FRAME L

PANEL

PAPER FEED

FRAME-TRANSFER

Детали

$xerox\126K29427.jpg$

Деталь:	PANEL UNIT, MFC9840CDW
Парткод:	126K29427
Цена:	11 700 ₽

Деталь:	Мотор подачи тонера
Парткод:	127K61370
Цена:	1 400 ₽

$xerox\019K11791.jpg$

Деталь:	Узел отделения бумаги из основного лотка, в сборе
Парткод:	019K11791
Цена:	1 300 ₽

Деталь:	Ролик подачи бумаги из основного лотка, в сборе
Парткод:	059K66781
Цена:	250 ₽

Деталь:	Вал переноса заряда
Парткод:	059K66830
Цена:	3 200 ₽

Коды ошибок

005-121

005-301

007-340

009-360 ... 009-363

010-397

016-315, 016-317

016-323

016-372

016-500, 016-501, 016-502

016-503 ... 016-507

016-718

016-719

016-737 ... 016-745

016-749

016-764, 016-766, 016-767

016-791, 016-795, 016-797

016-799

016-920

016-930, 016-931

016-981

016-985, 017-970, 017-988

017-980, 017-981

017-990

018-338

024-340

024-360

024-371

024-958

024-963

026-720, 026-721

026-722, 026-723

026-750, 026-751, 026-752

027-446

027-452

031-521 ... 031-558

031-529, 031-555

033-503, 033-513, 033-788

041-340

042-325

042-358

042-372

061-370

062-321

062-322

062-360

062-790

075-100

075-921

077-100

077-104

077-106

077-108, 077-109

077-304

077-900

077-901

091-402

092-310, 092-910

092-651

092-661

093-423 ... 093-426

093-919 ... 093-922

093-926, 093-960, 093-961, 093-962

093-930 ... 093-933

093-950, 093-951, 093-952, 093-925

093-970 ... 093-973

093-974

116-210, 116-395

116-314, 116-350, 16-351, 116-352

116-315, 116-317, 116-324, 116-326, 116-343

116-325

116-335

116-355

117-331 ... 117-366

124-333

134-211

191-310

193-700

Описание

Парткод

126K29424

Название

XEROX (126K29427) Узел термозакрепления 220V

Error code:
Description:	System Restart An internal IP Board error occurred.
Causes:	• IP Board, PL7.1.9
Remedy:	1 Check the connectors on the IP Board. Are the connections secure? Go to step 3. Securely reconnect the connectors, then go to step 2. 2 Does the error persist? Go to step 3. Complete. 3 Replace the IP Board. Does the error persist? Complete.

Error code:	005-121
Display:	Paper Jam 005-121 Open ADF Cover and Clear Jam
Description:	ADF JAM Detect ADFJAM
Causes:	• DADF Assembly (PL51.1.2) • IIT Pick-up Module Kit (PL51.1.4) • IP Board (PL18.1.22)
Remedy:	1 Check the document Does the document meet the specifications of the printer? Go to step 2. Use the right document. 2 Check the DADF Assembly Is the DADF Assembly closed properly against the platen glass? Go to step 3. Close the DADF Assembly properly. 3 Check the DADF Assembly connection Check the connection between the DADF Assembly and the IP Board. Is P/J1502 connected securely? Go to step 4. Connect P/J1502 securely. 4 Check the document path Open the DADF cover and check the document path. Are there any foreign objects, or paper pieces, etc. on the document path? Remove the foreign objects, or paper pieces, etc. Go to step 5. 5 Check the IIT Pick-up Module Kit Is the IIT Pick-up Module Kit installed properly? Go to step 3. Reinstall the IIT Pick-up Module Kit. 6 Check the IIT Pick-up Module Kit Is the IIT Pick-up Module Kit deformed or worn out? Replace the KIT IIT Pick-up Module. Go to step 7. 7 Check after replacing the DADF Assembly Replace the DADF Assembly. Does the error still occur? Replace the IP Board. Finished.

Error code:	005-301
Display:	Cover Open 005-301 Remove paper then Close ADF Cover
Description:	ADF Cover Open
Causes:	• DADF Assembly (PL51.1.2) • IP Board (PL18.1.22)
Remedy:	1 Check the DADF cover Is the DADF cover closed properly? Go to step 2. Close the DADF cover properly. 2 Check the DADF Assembly connection Check the connection between the DADF Assembly and the IP Board. Is P/J1502 connected securely? Go to step 3. Connect P/J1502 securely. 3 Check after replacing the DADF Assembly Replace the DADF Assembly. Does the error still occur? Replace the IP Board. Finished.

Error code:	007-340
Description:	Main Motor Failure Fuser Error
Causes:	• Main Drive Assembly, PL6.1.2 • Harness Assembly Main MOT, PL 6.1.7 • MCU Board, PL7.2.2
Remedy:	1 Check these connections • MCU Board P/J16 • Main Drive Assembly P/J160 Are the connectors secure? Go to step 3. Secure the connectors and then go to step 2. 2 Does the error persist? Go to step 3. Complete. 3 Check the Main Drive Assembly for rotation. For the 6000B, see gDigital Output Test Proceduresh on page A-16, or for the 6015 MFPs, see gWorkCentre 6015 MFP Motor Test Proceduresh. Does the Main Drive Assembly function normally? Replace the MCU Board. Go to step 4. 4 Check the Main Drive Assembly for proper installation. Is the Main Drive Assembly installed correctly? Go to step 6. Reseat the Main Drive Assembly, and go to step 5. 5 Does the error persist? Go to step 6. Complete. 6 Checking the Harness Assembly Main MOT for continuity. Disconnect P/J16 from the MCU Board, and P/J160 from the Main Drive Assembly. Is each cable of P/J16 <=> P/J160 continuous? Go to step 7. Repair the harness. 7 Disconnect the P/J16 on the MCU Board. Are the voltages across ground to P/J6-2pin/P/J6-4 pin on the MCU Board approximately +24 VDC when the Interlock Switch is pushed? Replace the Main Drive Assembly. Replace the MCU Board.

Error code:	009-360 ... 009-363
Description:	X CRU Life Over The indicated Toner Cartridge has reached end of life. • 009-360 to 009-363: Replace Toner Cartridge Now
Causes:	• Harn assy dckr, PL4.1.2 • MCU Board, PL7.2.2
Remedy:	1 Reseat the appropriate Toner Cartridge. Does the error persist? Go to step 2. Complete. 2 Does the error persist when the power is turned off and on? Go to step 3. Complete. 3 Check P/J13 on the MCU Board. Is the connection secure? Go to step 5. Reconnect P/J13, then go to step 4. 4 Does the error persist? Go to step 5. Complete. 5 Disconnect P/J13 on the MCU Board, and inspect the harness. Is the harness damaged? Repair the harness, then go to step 6. Go to step 7. 6 Does the error persist? Go to step 7. Complete. 7 Replace the Toner Cartridge (C, M, Y, or K). Does the error persist? Replace the MCU Board, then go to step 4. Contact your designated field support for assistance.

Error code:	016-323
Description:	B-Formatter Fatal Error RAP 016-323 Fatal error has occurred in the B-formatter task.
Causes:	• IP Board, PL7.1.9 • MCU Board, PL7.2.2
Remedy:	Initial Actions Collect the detailed procedures below from the customer when a trouble occurred. 1. In which mode the problem occur? (Copy/Scan/Print/Fax) 2. What job was performed when the problem occurred? 3. Check the job settings from the UI. 4. Collect other information as much as possible to reproduce the error. • For Jobs that went through a network, also collect the output report and the network configuration. • For Print, also Obtain the PRN file of the Job if possible. Procedure 1. Obtain the log file using the log tool. Perform 2.6 Log RAP • If there was a reboot after the error had occurred and hence was unable to Obtain the log, set NVM (700-530) to’0’ to perform log collection and return the NVM (700- 530) to’1’ after completing the procedure. 2. Perform Hardware Diagnostic using the LONGDIAG MODE in the Special Booting Menu. (Refer to GP 15 Special Booting.) 3. Check the version of Controller ROM. If it is not the latest, download and update to the latest software revision. Refer to Firmware Version Upgrade GP 9 4. Turn the power off and on. 5.The error persists after turning the power off and on GP 4, Obtain the log file using the log tool. Perform 2.6 Log RAP 6. Turn off the Power GP 4, unplug the power cord for 2 minutes, then turn on the Power again GP 4 to perform the same operation where the error occurred. 7. Verify the wire harness connections on each board are installed properly, then perform the same operation creating the error. 8. Install a new ESS Board REP 18.1.2 (MFP), REP 18.5.2 (SFP) and perform the same operation where the error occurred, the error persists. 9. Reinstall the original ESS Board and contact the Support Department for instructions.

Error code:	016-718
Display:	Memory Full 016-718 Printer Job too Large
Description:	Memory Over flow
Causes:	• Optional Memory Card (SFP PL8.1.15; MFP PL8.1.4)
Remedy:	1 Check for memory expansion. Is additional memory installed? Is the additional memory installed properly? Go to step 2. Install additional memory. Or, reinstall it properly. 2 In the printer driver, set the Print Mode to “Standard”. Does the error persist during printing? Go to step 3. Complete. 3 In the Control Panel, go to Admin Menu > Maintenance (Mode) and delete data by executing Clear Storage. Does the error persist during printing? The current printing job process cannot be continued because the memory capacity is exceeded. Complete.

Error code:	024-958
Display:	Paper Size Mismatch 024-958 Printer Load Paper then Press P AAAAA (or BBBBB)
Description:	Paper Size Mismatch The size of paper in the MFP (or PSI) does not match the specified print size. AAAAAA: Paper Size BBBBBB: Paper Type
Causes:	• Registration Sensor, PL2.3.5 • Registration roller bushing(s) and spring(s)
Remedy:	1. Check the Regi Sensor in diagnostics. Does the display change when the actuator is moved? Go to step 2. Replace the Regi Sensor. 1. Check the registration rollers. Are all the rollers in contact with even pressure on each side? Are the registration pressure roller bushings and springs correctly installed? Go to step 3. Correct the registration roller installation issue. 1. Is the transfer roller mounted correctly and not binding? Replace the MCU Board 1. SaveNVM to ESS 2. Replace the MCU Board. 3. LoadNVM from ESS Correct the transfer roller mounting issue.

Error code:	024-963
Display:	No Suitable Paper 024-963 Printer Load Paper
Description:	No Suitable Paper The MFP (or PSI) has run out of paper or the size (or type) of paper does not match the specified print size (or type). XXXXXX: Paper Size YYYYYY: Paper Type
Causes:	• Registration Sensor, PL2.3.5 • Harness Assembly RKN SNS, PL2.2.25 • MCU Board, PL7.2.2
Remedy:	1. Check the Regi Sensor in CE Diag. Does the display change when the actuator is moved? Go to step 2. Replace the Regi Sensor. 2. Check the Registration Rollers. Are all the rollers in contact with even pressure on each side. Are the registration pressure roller bushings ad springs correctly installed? Go to step 3. Correct any Registration Roller installation issues. 3. Is the Transfer Roller mounted correctly and not binding? 1. SaveNVM to ESS 2. Replace the MCU Board. LoadNVM from ESS. Correct any Transfer Roller mounting issues.
